FF TLF 6000 4×4

Category:

Superstructure

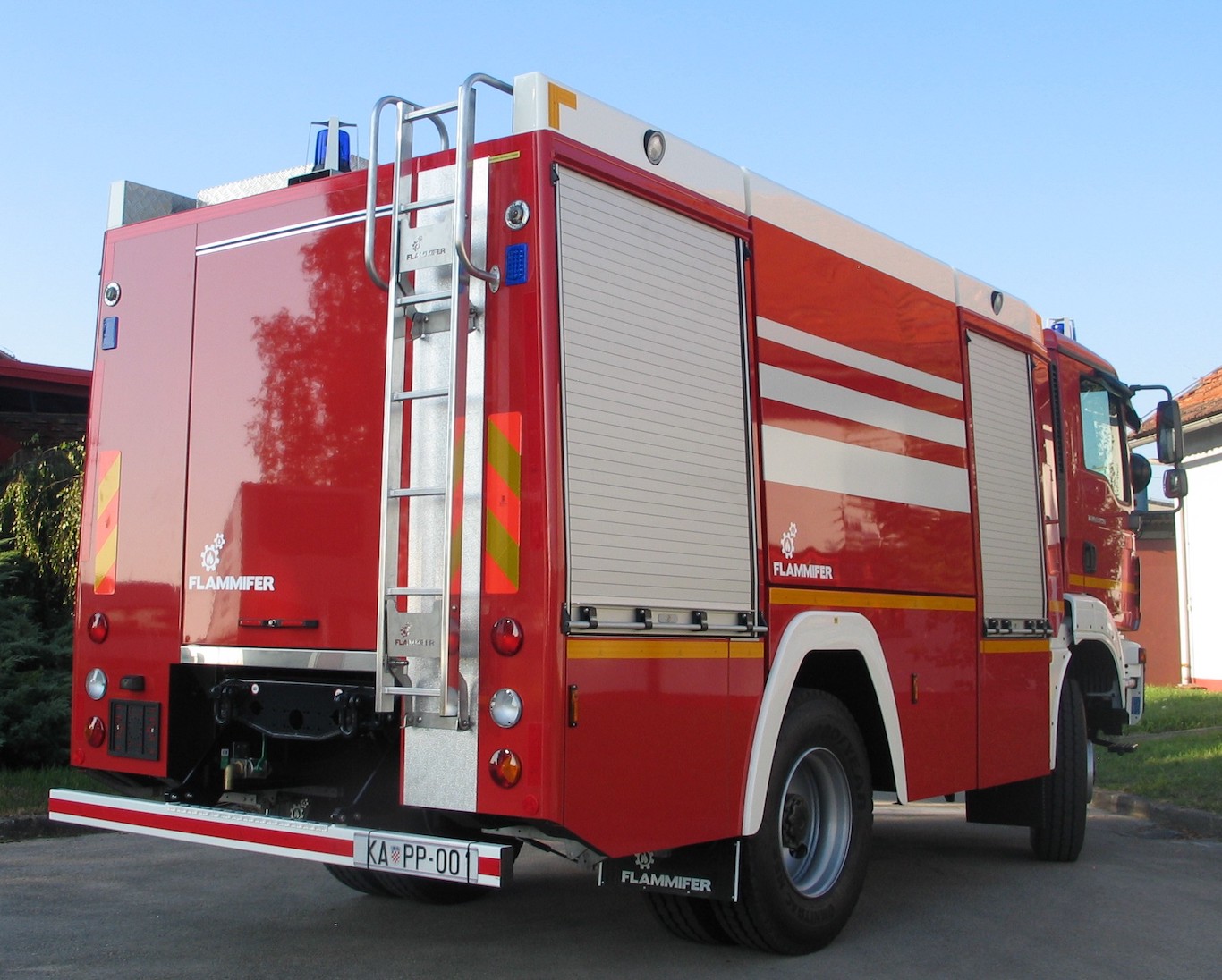

  • The Flammifer FF TLF 6000 is a tank pumper, 15.5 t GVW, with a short cab for up to 3 firefighters
  • If necessary, it is intended for water transport to the intervention site and also for the transport of potable water. It is suitable for fire extinguishing as well as extinguishing fires in open spaces.
  • Its short wheelbase and its overall length reduce the radius of rotation and make it easier to operate the vehicle in narrow surroundings. The four-wheel-drive enables easier to move in the rugged terrain.
  • Tank pumper is equipped with a fire extinguishing pump of normal and high pressure, one high-pressure rapid intervention hose reel with high-pressure water nozzle, and a 6.000 litres water tank located on the chassis between two compartments for firefighting equipment
  • Complete superstructure is made of light material (aluminium)
  • Two aluminium roller shutters with a bar lock on each side of the vehicle
  • On the backside door or roller shutter with a bar lock
  • Internal superstructure LED lighting is turned on during the opening of the superstructure
  • LED lighting of the surroundings, laterally and back
  • Easy removal of firefighting equipment and its large transparency
  • Heavier equipment fitted low and easily accessible

Chassis

  • MAN TGM 13.250 BL 4×4 EURO 5
  • Short cab for 3 firefighters (1+2)
  • Wheelbase: 3250 mm
  • Engine power: 250 HP / 184kW
  • Dimensions of the vehicle: L x W x H: 6550 x 2500 mm x 3200 mm
  • GVW: 15.500 kg

Firefighting Equipment

  • 6000 L water tank made of PPC
  • Normal and high-pressure pump type:
    • FPN 10-2000, FPH 40-250
  • High-pressure rapid intervention hose reel of 60 or 80 m in length with electrical reeling and high-pressure water nozzle
  • Ladders for roof access to the superstructure
  • Brackets for firefighting equipment defined by the client

Signalization

  • Signalization of the vehicles according to regulations for firefighting vehicles
  • LED signal light bar on the roof of the vehicle
  • Two LED flashlights on the front and the back of the vehicle
  • Multi-tonal fire siren with PA system
  • Setup for installation of radio
  • All the main signs on the client’s language
  • All other signalization according to national regulations

Optional

  • Light mast with 4 LED reflectors and pneumatic extraction
  • Roof turret: capacity of 1,600 lit/min, mounted on the roof of the superstructure, foldable with manual control of engine’s RPM
  • Second HP rapid intervention hose reel with 60 or 80 m of hose
  • NP rapid intervention hose reel with 25 m of hose
  • Rescue winch

Catalogue

EN – FF TLF 6000 4×4
