FF - PP 1.2 - Sandbag filling machine

FF – PP 1.2 – Sandbag filling machine

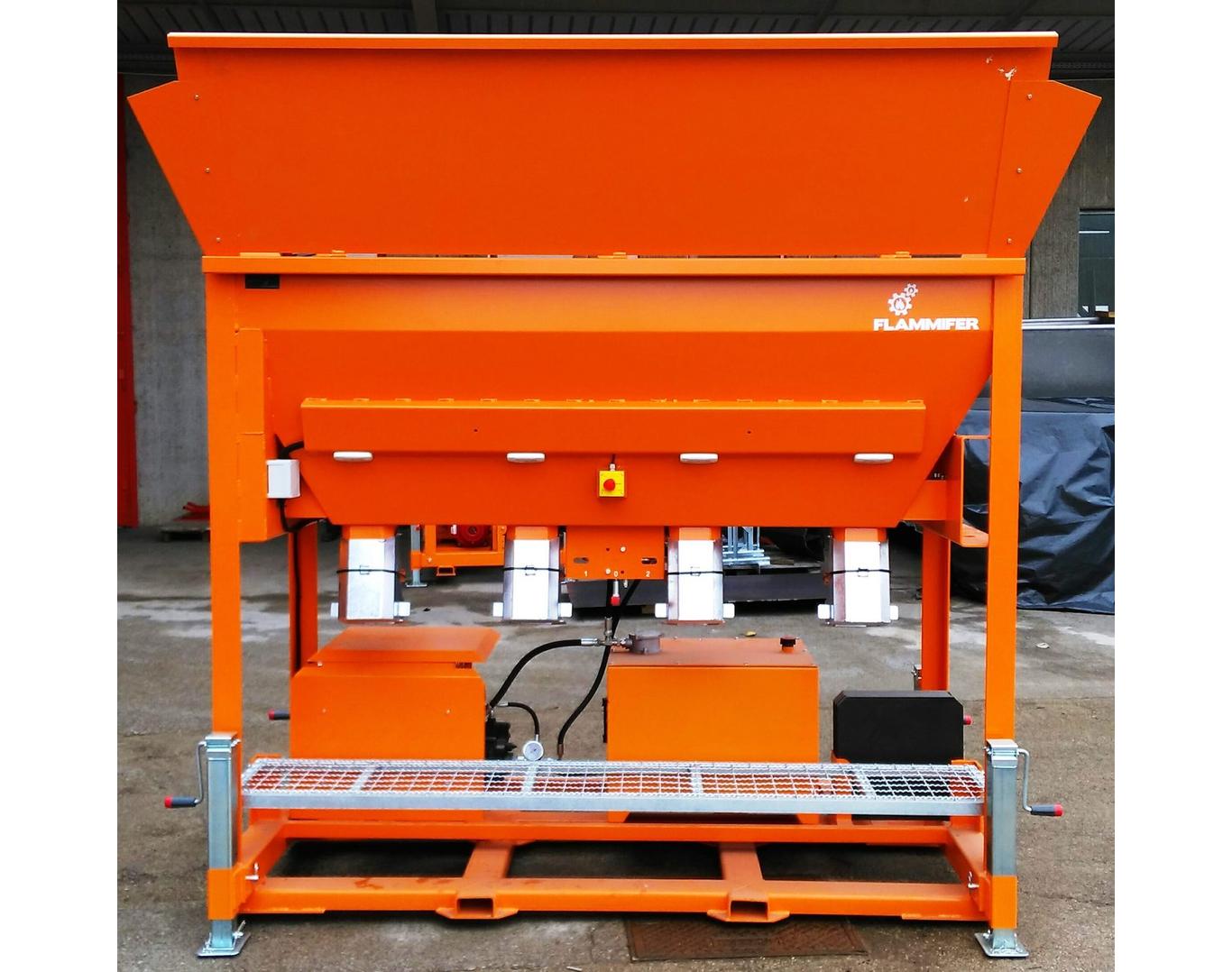

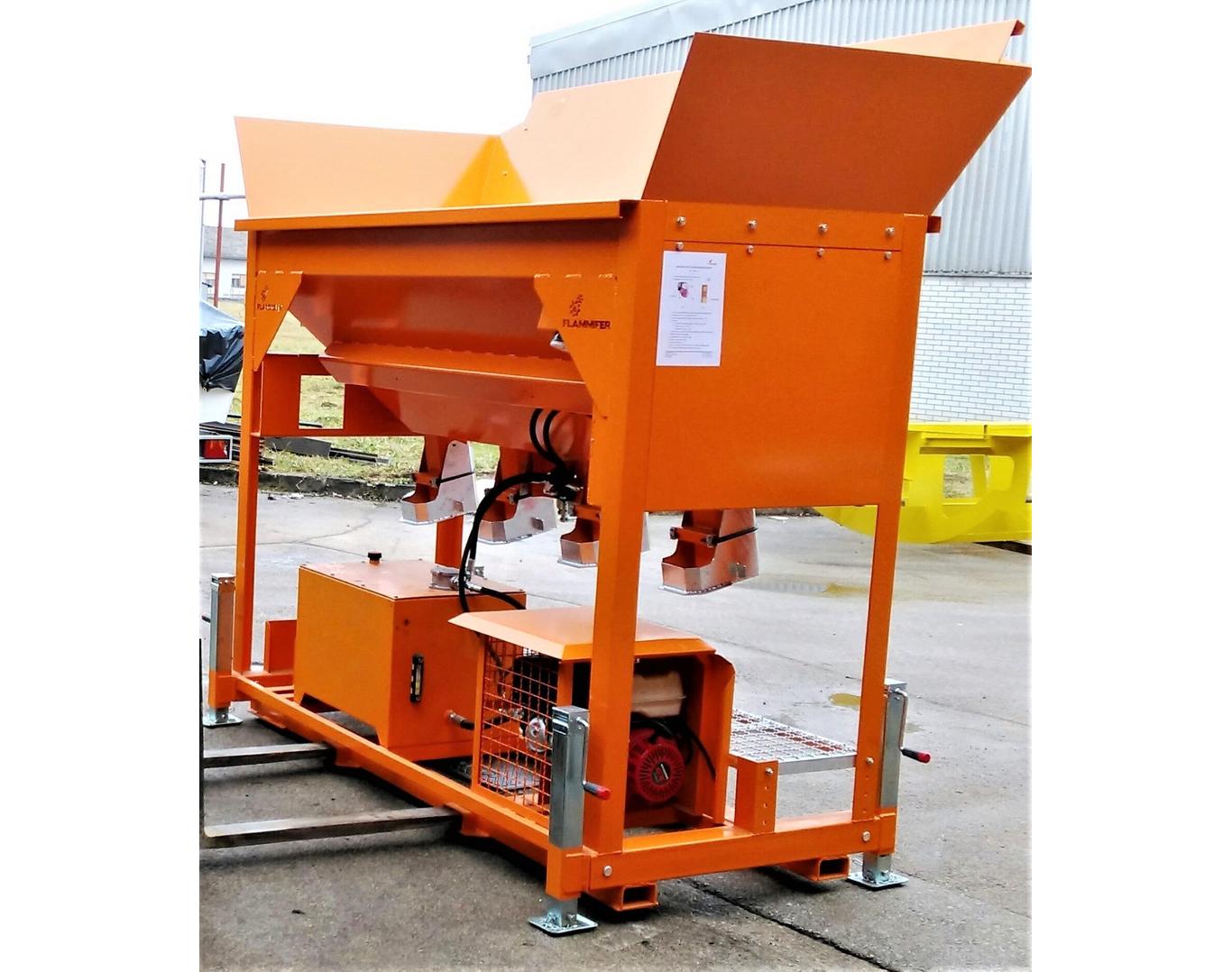

FLAMMIFER FF-PP 1.2 is a simple designed and robust sandbag fi lling machine which is used for protection of areas and property in flooded areas and other crisis
situations
This highly efficient machine fills bags quickly and fully excludes shovels
Made entirely from steel.
Sand dosing toward the outlets is performed by worm transporters with a sand mixer. Worm transporters are driven by a hydro motor and a chain. Filling is activated
manually
Outlets for sand filling are made in a way to protect the operator from a head injury during bag filling
Platform on which bags rest during fi lling is made of a 4 mm zinc coated wire profi le with a possibility of vertical adjustment
Bag dimensions: 600×400 mm and 500×400 mm
Protective grid above worm transporters.
Metal folding protection from overfi lling and decanting, 600 mm
Mesh protection of the drive motor on all four sides
Protective cover above drive motor which disables sand to enter into rotating motor parts
Telescopic stabilizers for levelling and additional safety during work, max. span 2000×2400 mm
Machine is suitable for manipulation with a forklift on its all four sides
LED light for the working area, charged from the machine’s motor, independent of outer charging (5 lights)

Tehnical Characteristics

Dimensions l/w/h: 2300/1200/1900 mm.
Volume of filling funnel: 1,2 m3, made of steel 52.3, thickness 3 mm.
Metal protector from sand spilling, foldable, height 600 mm.
Filling capacity: 1600 bags/h.
Possibility of filling bags dimensions 600 x 400 and 500 x 400.
Conic sand outlet, 4 pieces
Sand dosing system performed by worm transporters with a sand mixer
Worm transporter drive by a chain driven hydro motor
Protective cover above worm transporters
Manual activation of filling
Platform for easier bag filling made made of a 4 mm zinc coated wire profi le with a possibility of vertical
adjustment
Gasoline motor for drive, power 11,5 KS, 4 stroke, air cooled, fixed with elastic rubber straps
Variable type pump
Reservoar for hydraulic oil, oil level checking glass
Control valve for worm transporter and sand mixer
STOP switch
LED light for lightning of working area (4 filling places and a controller light)-charged from drive
Color: RAL 2011 – orange
Additional equipment: 4 wooden impregnated mats dim. 400×400 mm
Gasoline reservoar 10 lit.
