FF TLF 320/30 4x4 DC Command Vehicle

Superstructure

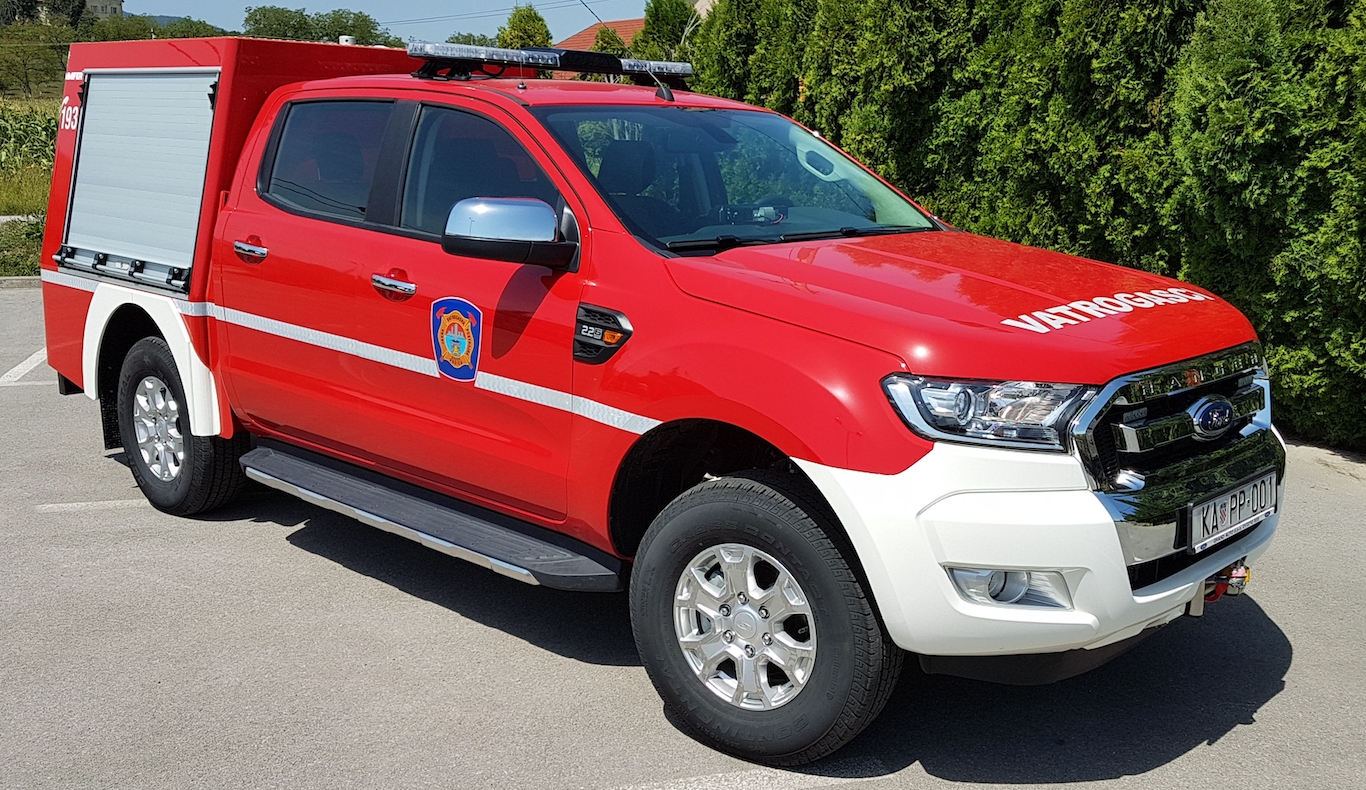

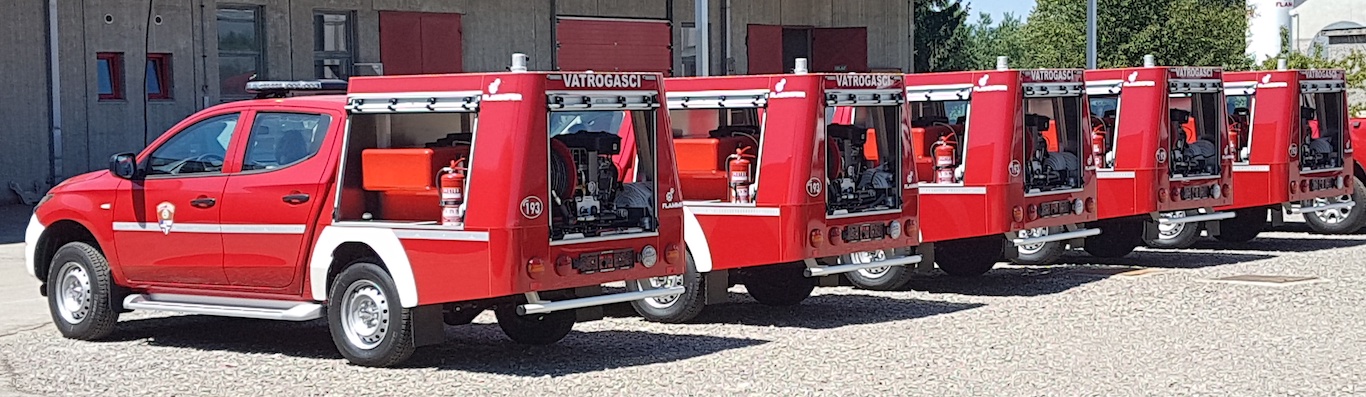

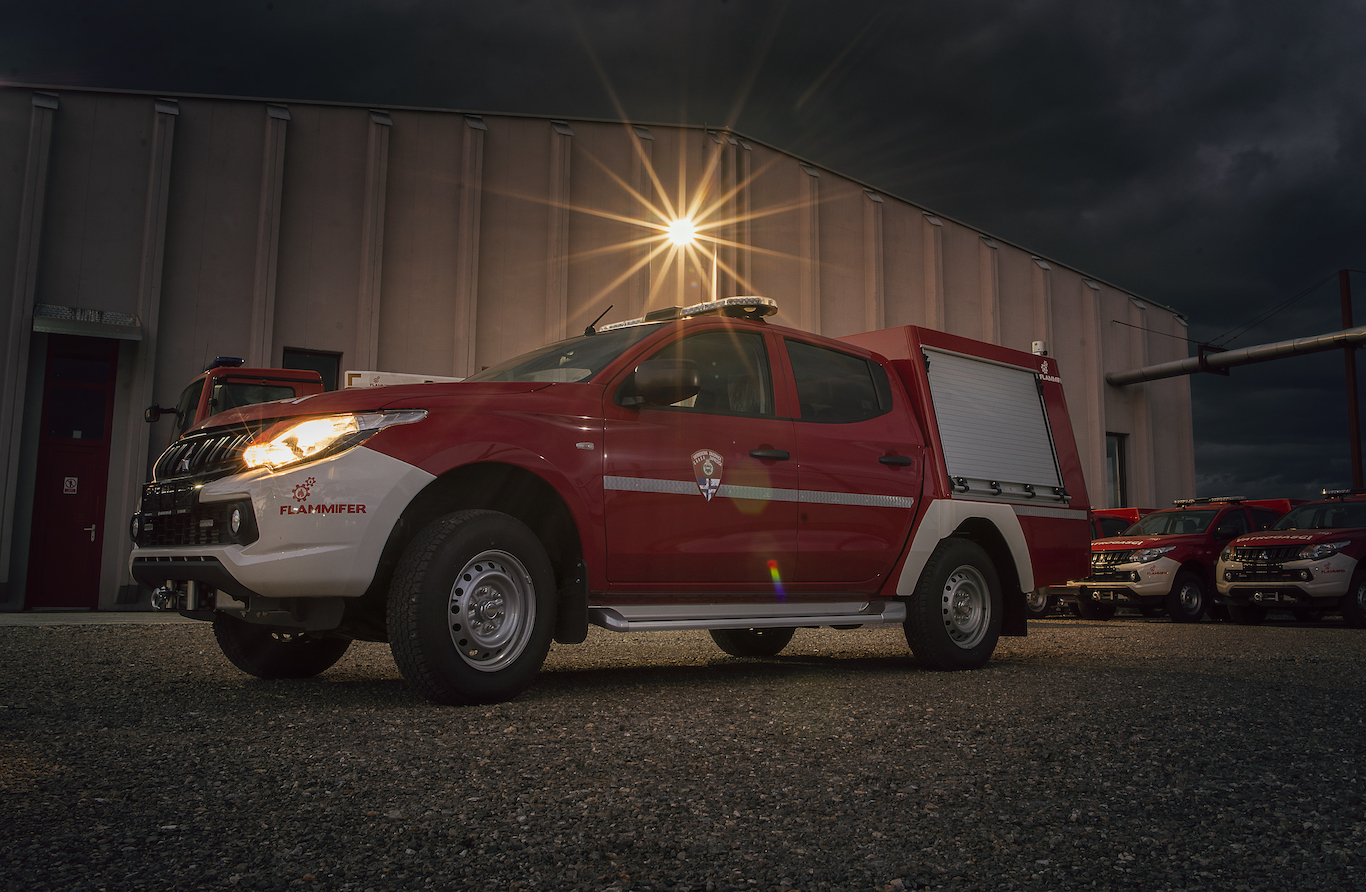

Flammifer First Response Vehicle FF VV 320/30 is a fire engine for initial fire extinguishing
Small and agile vehicle with superstructure in which the high-pressure module is located and also 320 litres water tank + 30 litres foam tank

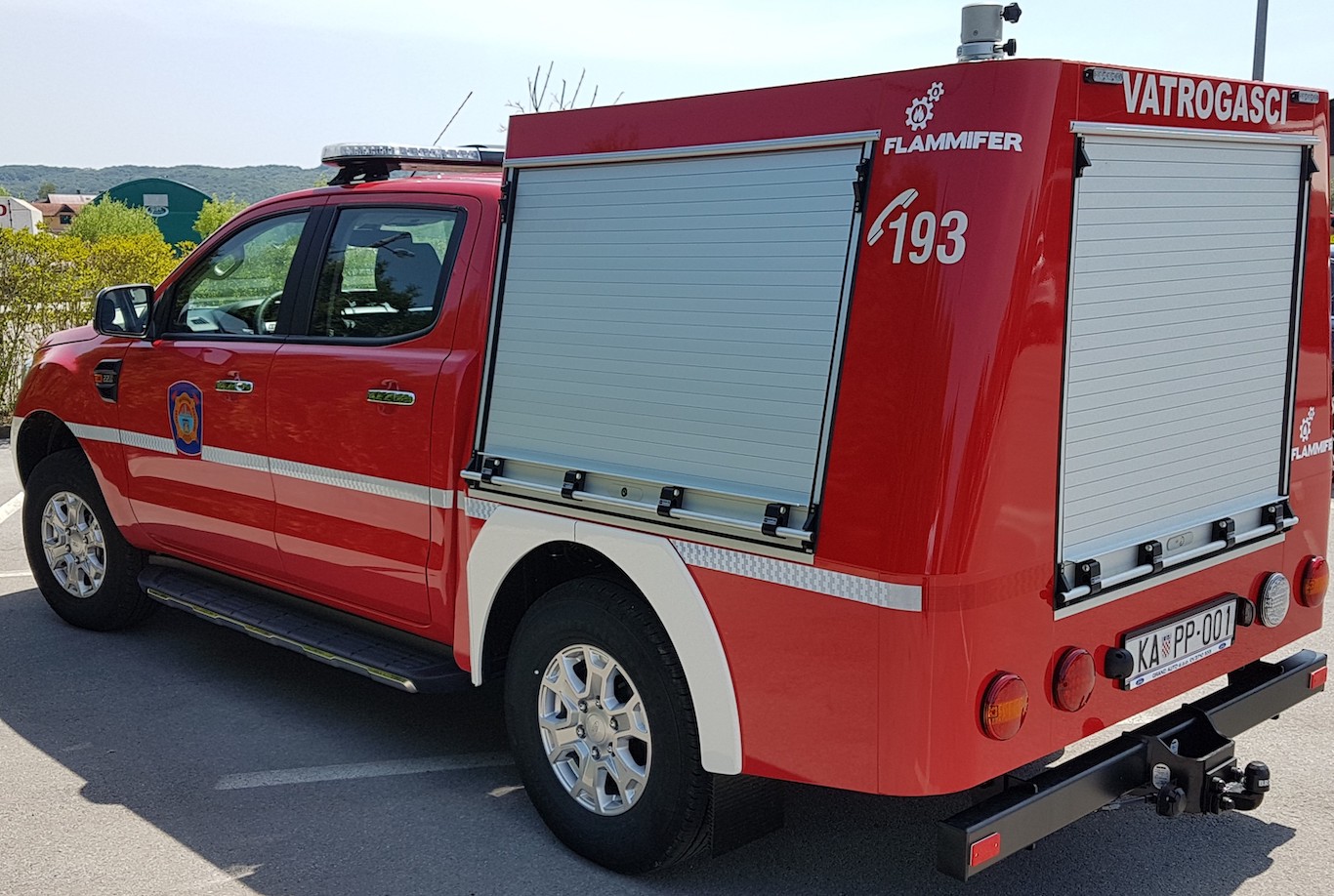

Aluminium superstructure with low opening

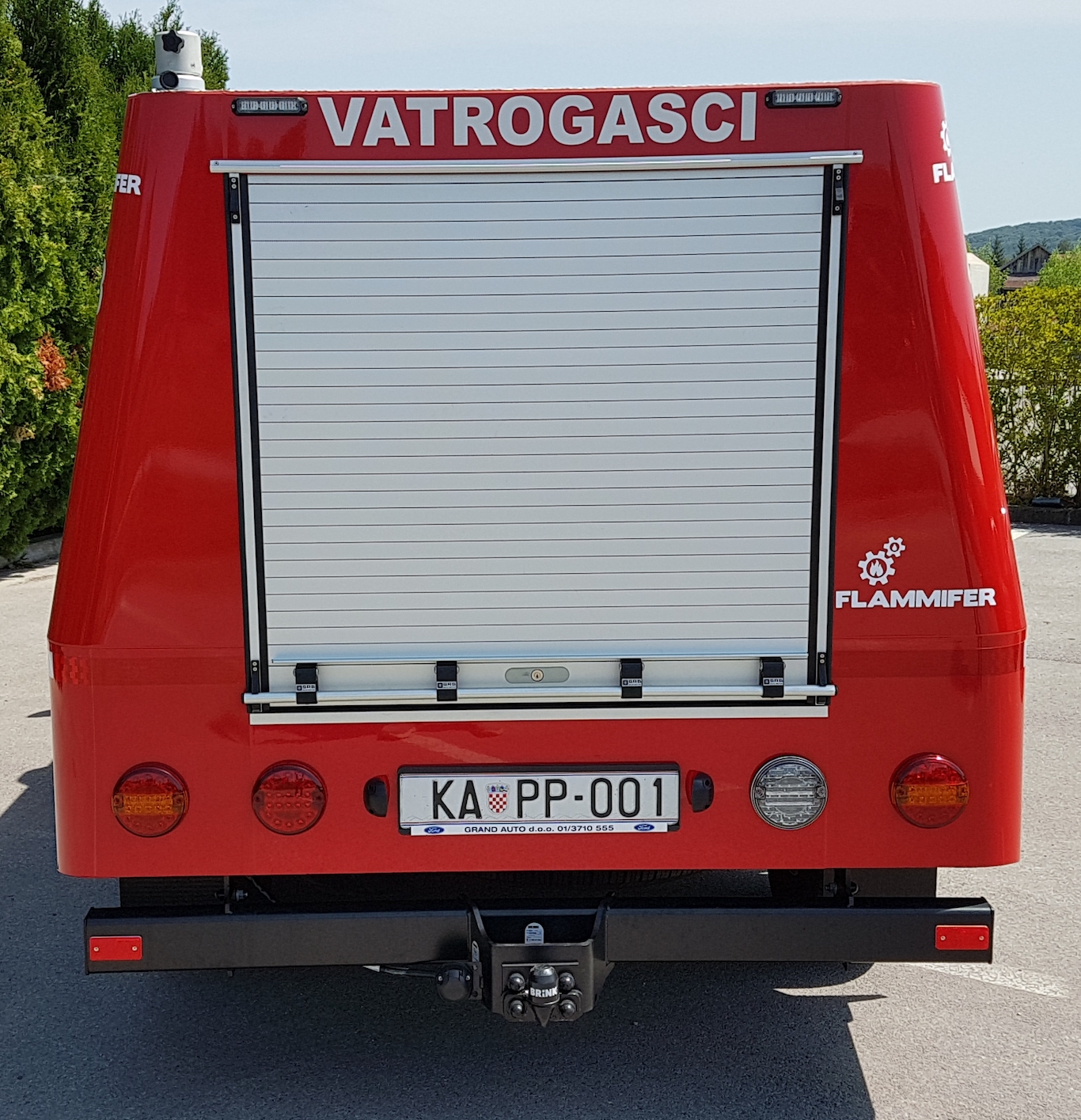

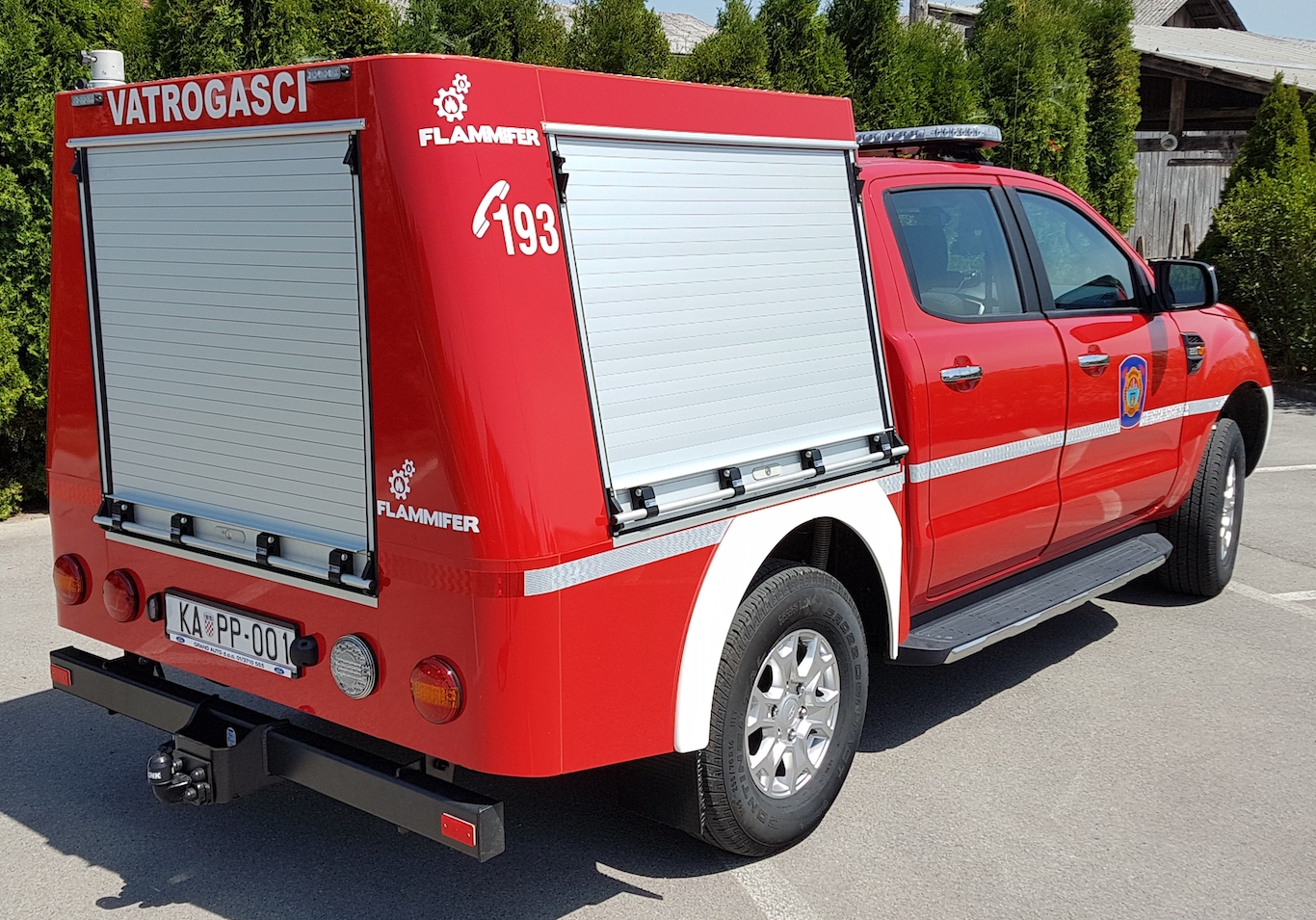

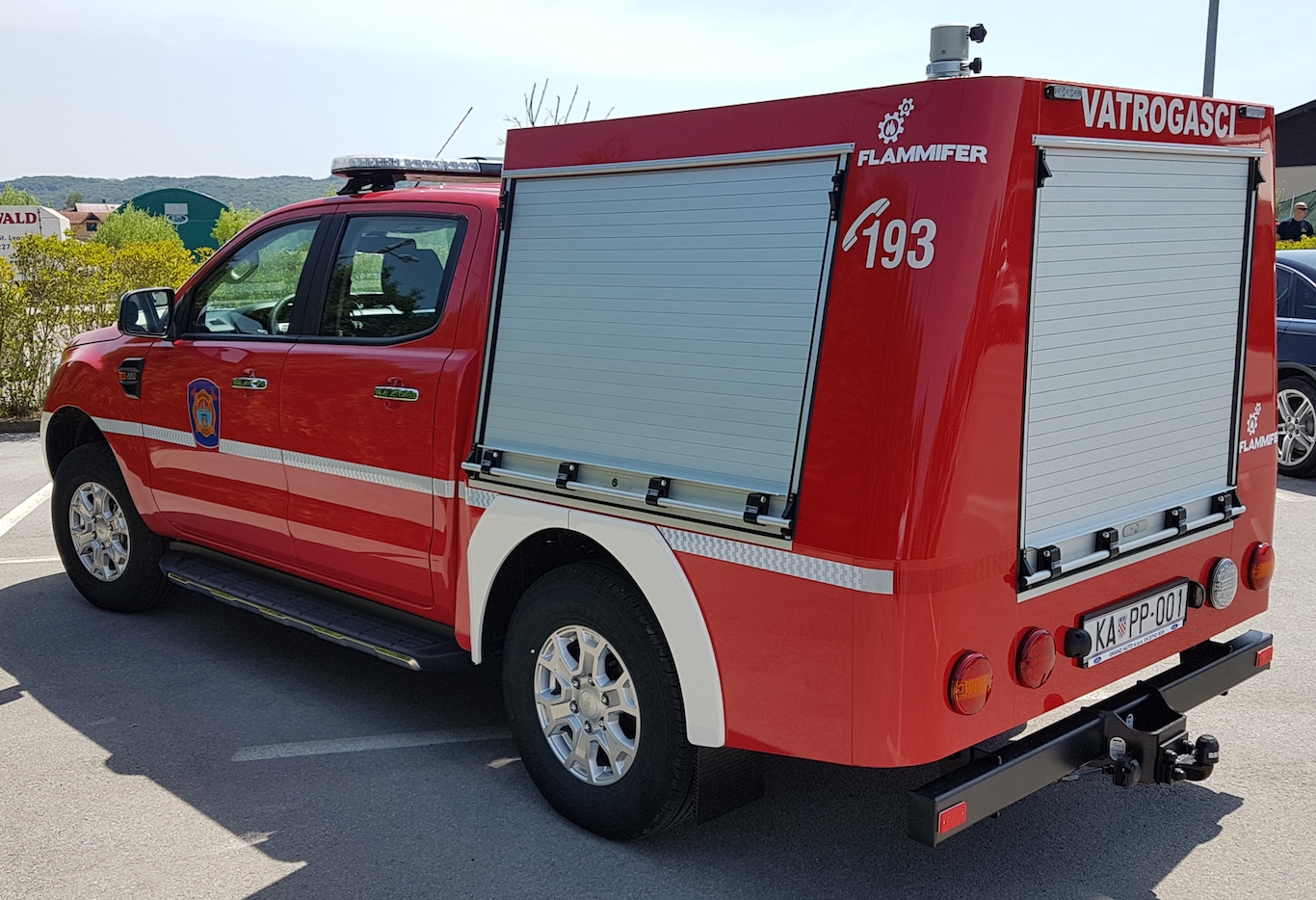

Three roller shutters with a bar lock
Internal superstructure lightning

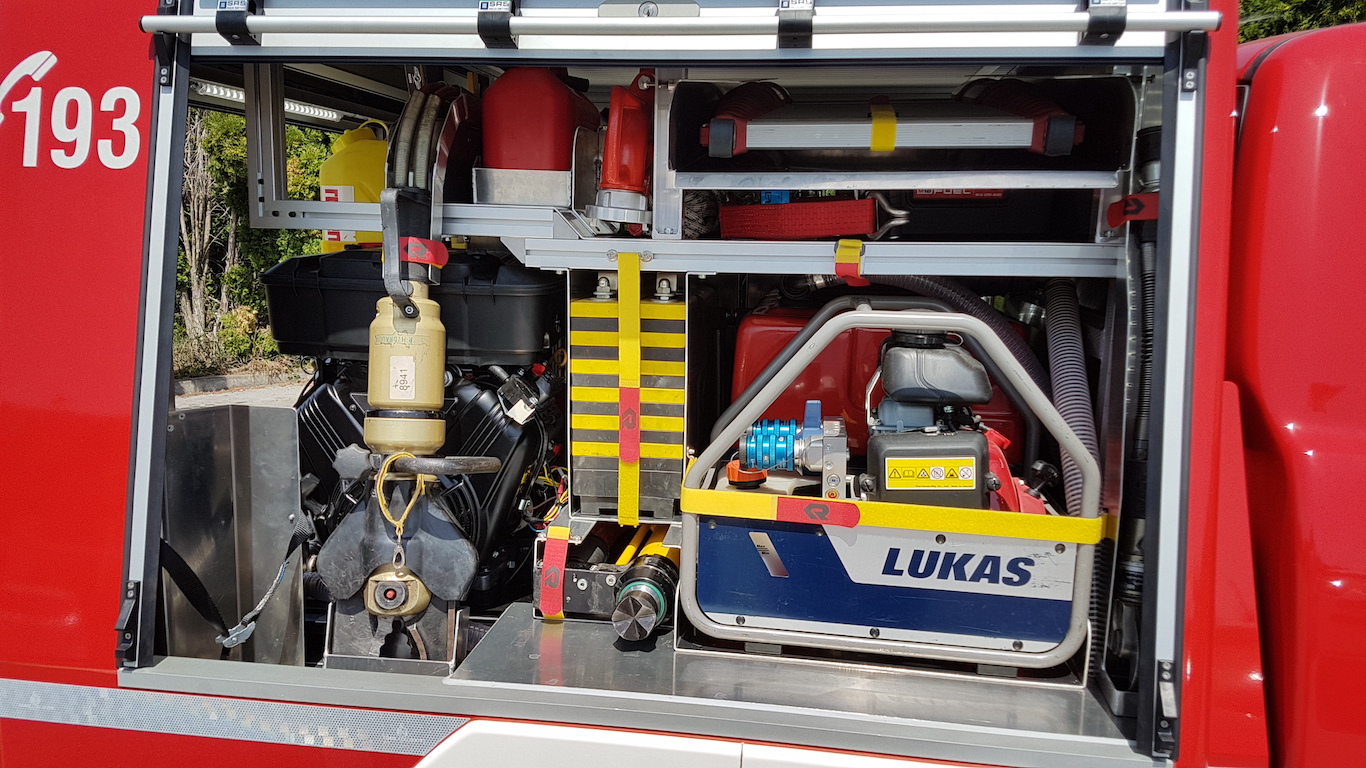

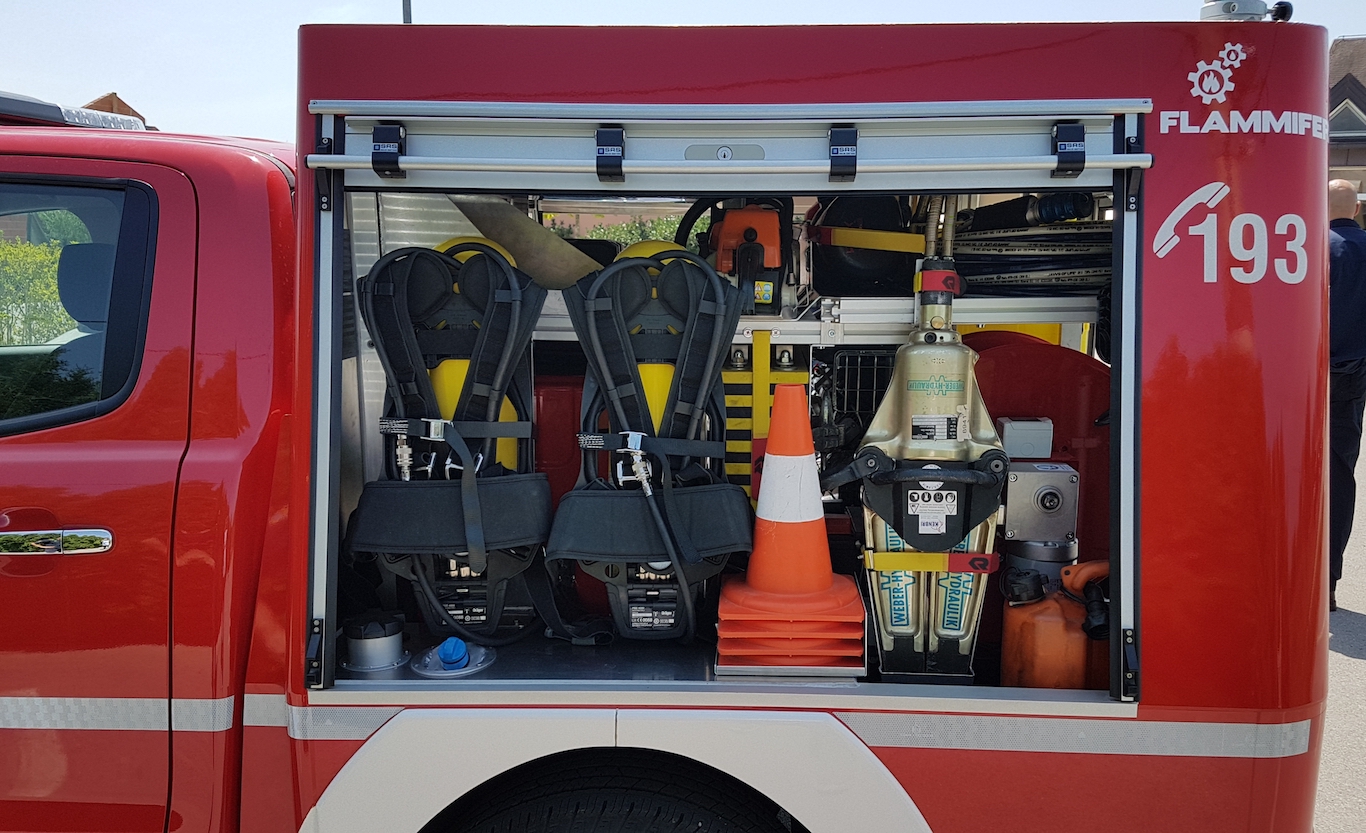

Easy removal of firefighting equipment and its large transparency
Heavier equipment fitted low and easily accessible

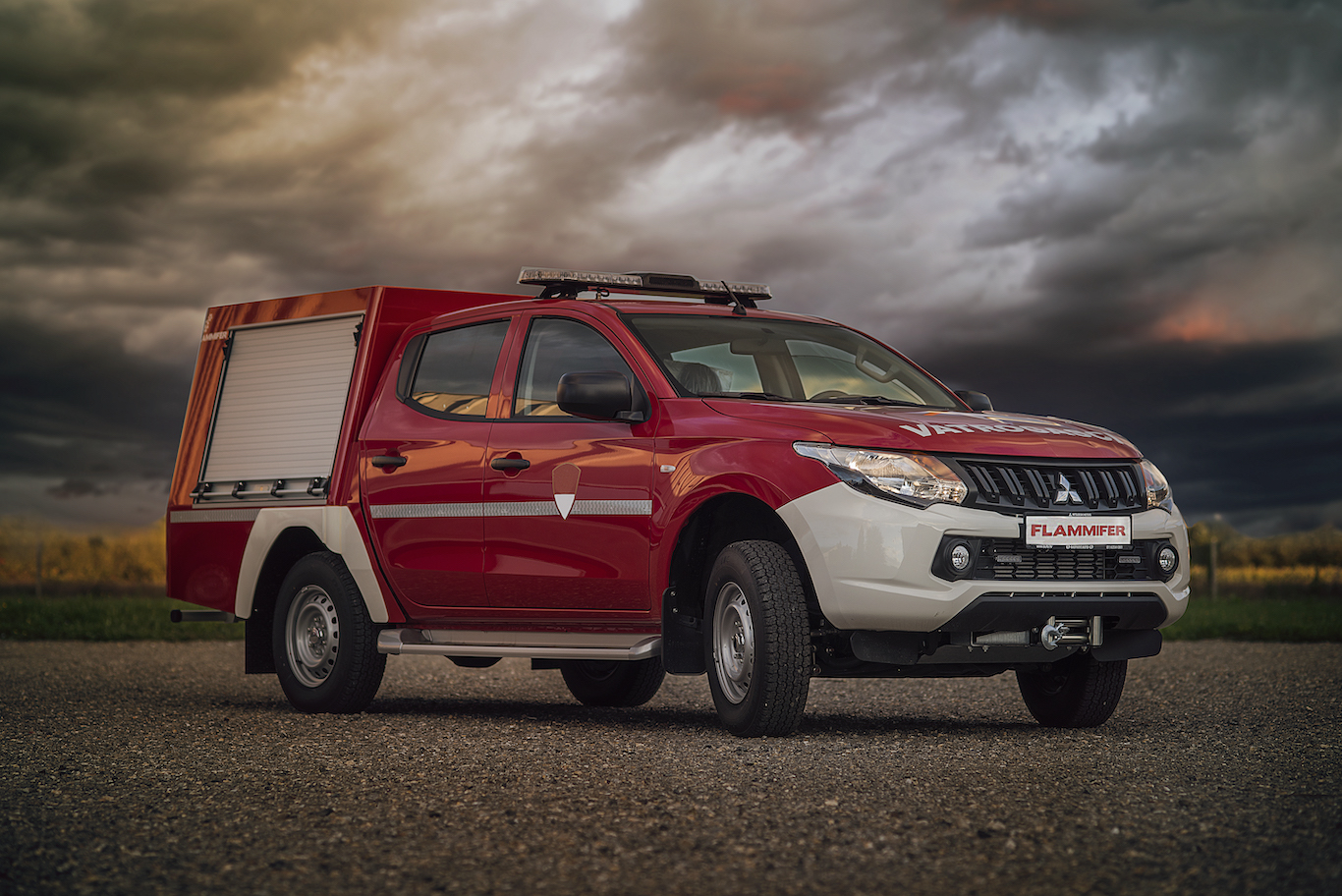

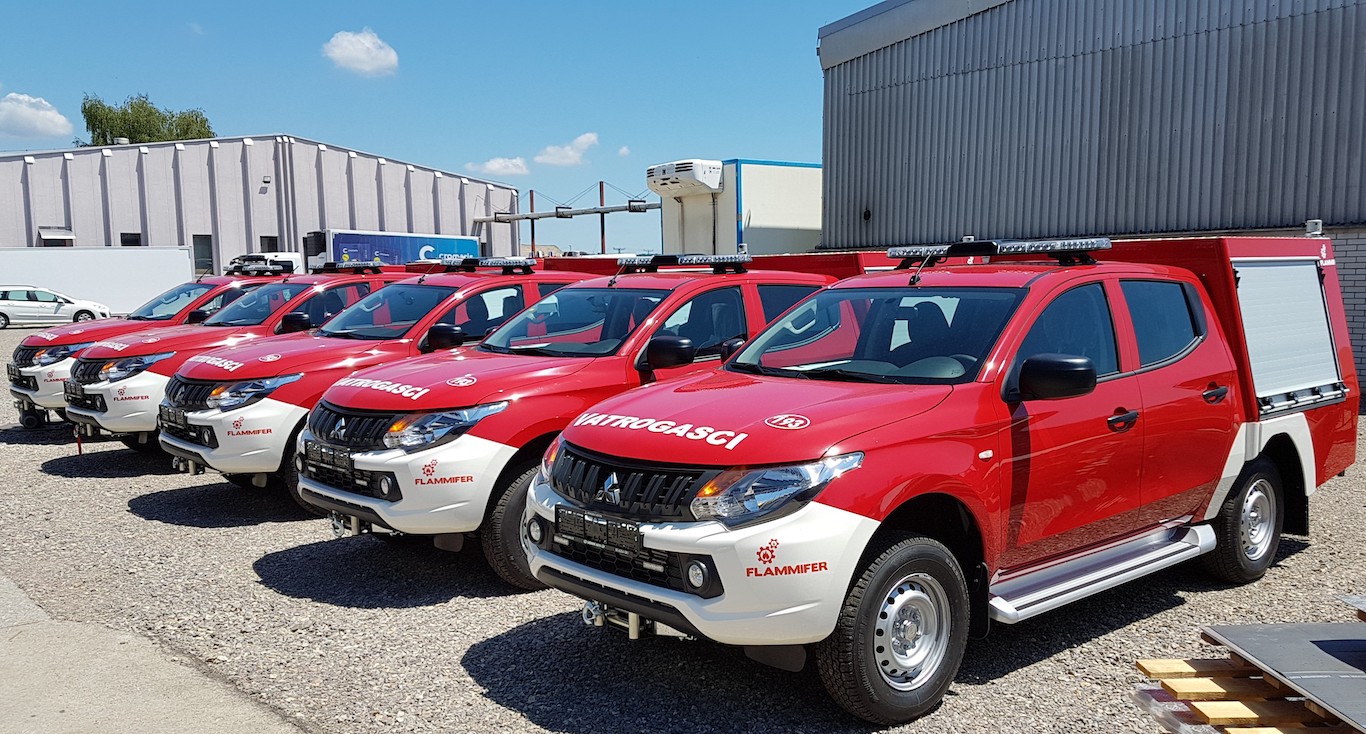

Mitsubishi L200 pick-up 4×4, double cabin
Crew cab for 5 crew members
Engine power: 154 HP / 113 kW
GVW: 2.900 kg
Dimensions of the vehicle: L x W x H: 5500 x 2000 x 2200 mm
Possibility of superstructure on a pick-up 4×4 chassis: MITSUBISHI L 200, FORD RANGER, NISSAN NAVARA, VW, TOYOTA, and others

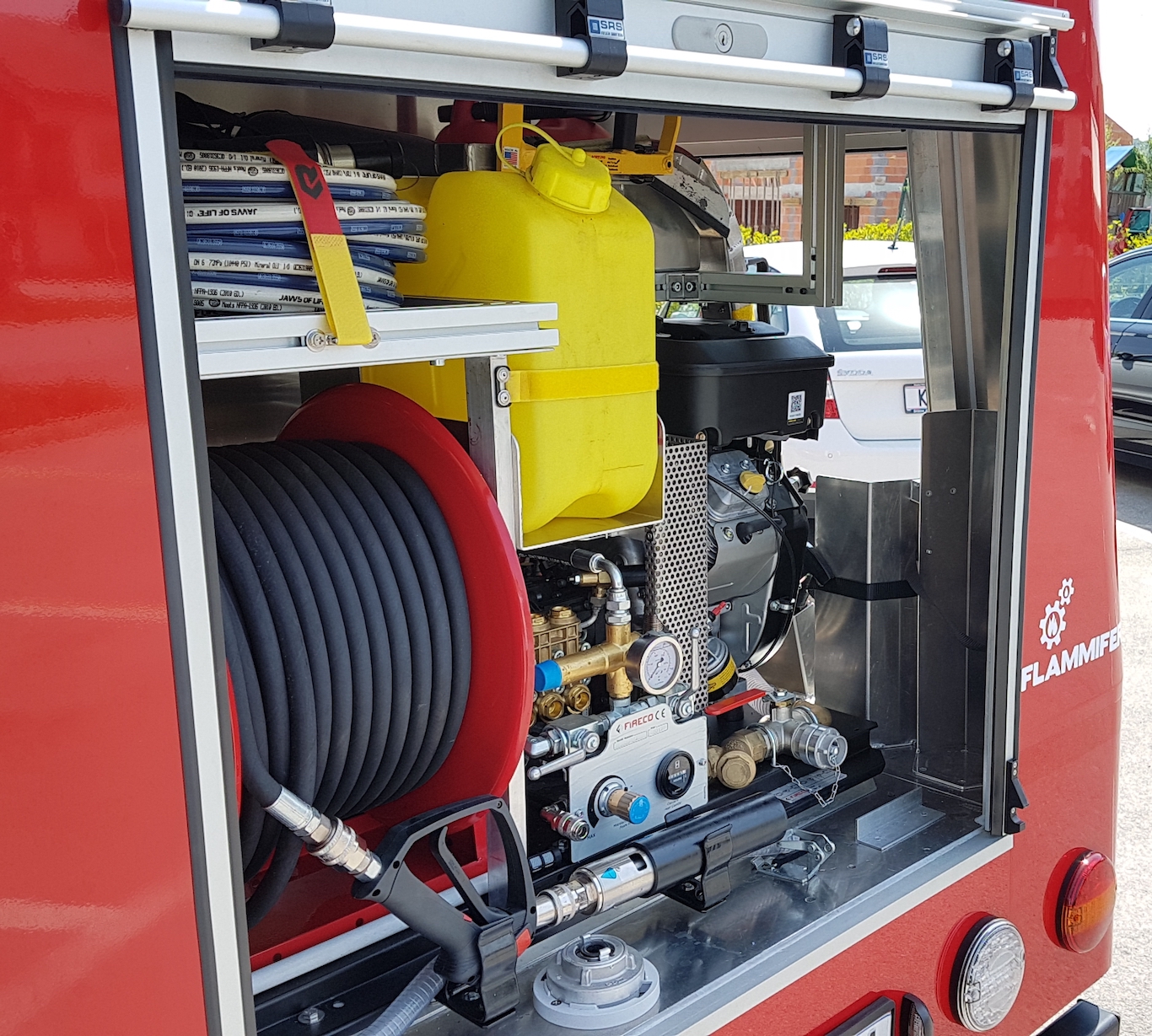

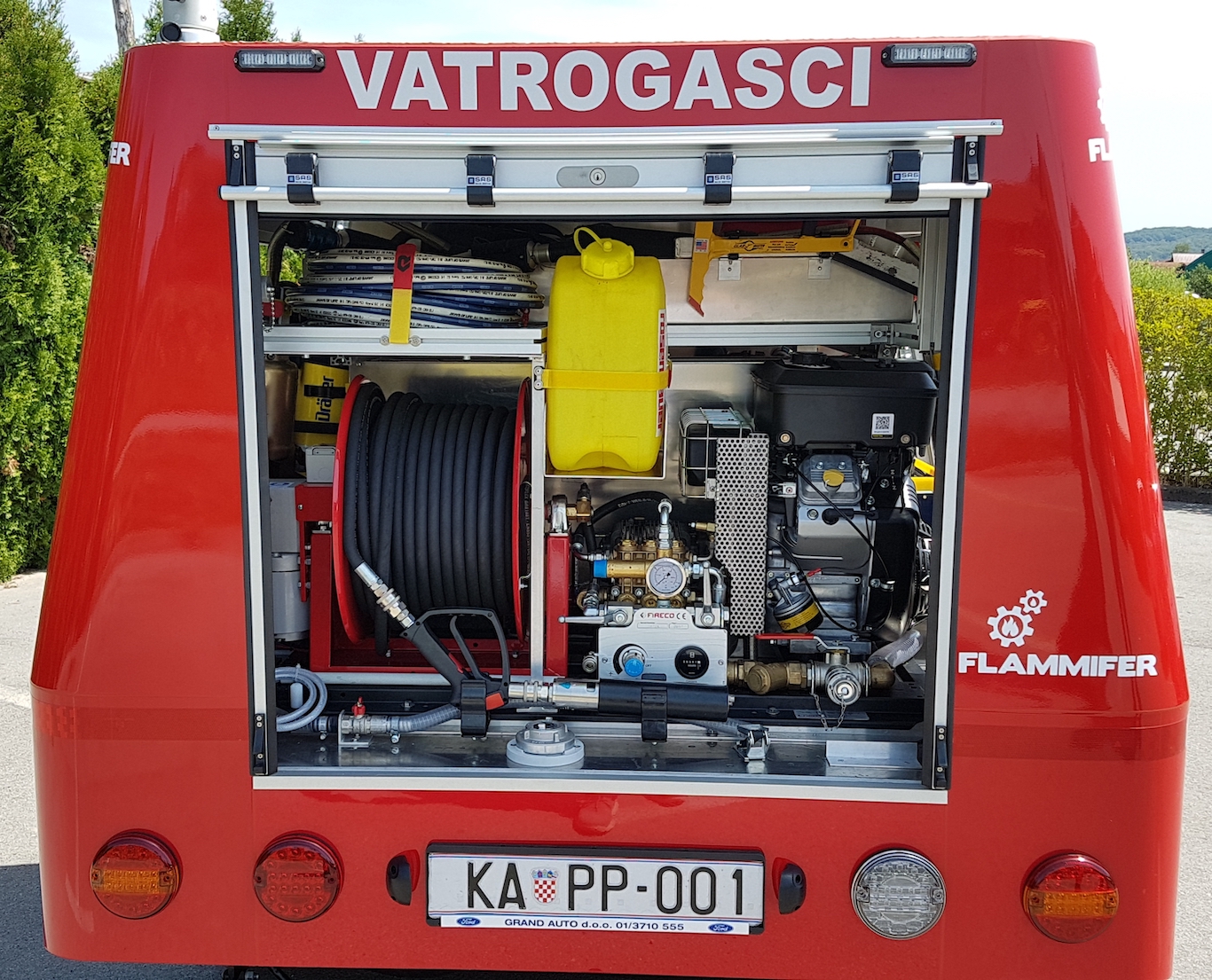

High-pressure module:
320 litres water tank with mechanical level indicator
30 litres foam tank
High-pressure pump with a flow rate of 42 litres at 100 bar
Rapid intervention hose reel with 13 mm hose diameter and of 60 m or 80 m in length, with manual or electrical reeling
Petrol engine of 14HP with air cooling
Automatic accelerator
7 litres fuel tank
Foam mixing device 1-6% within the pump
Foam extinguishing with an additional hose up to 200m with 100% efficiency
Filling connection with STORZ coupling D
Additional pipe with suction strainer for water intake from outer sources

Signalization of the vehicles according to regulations for firefighting vehicles

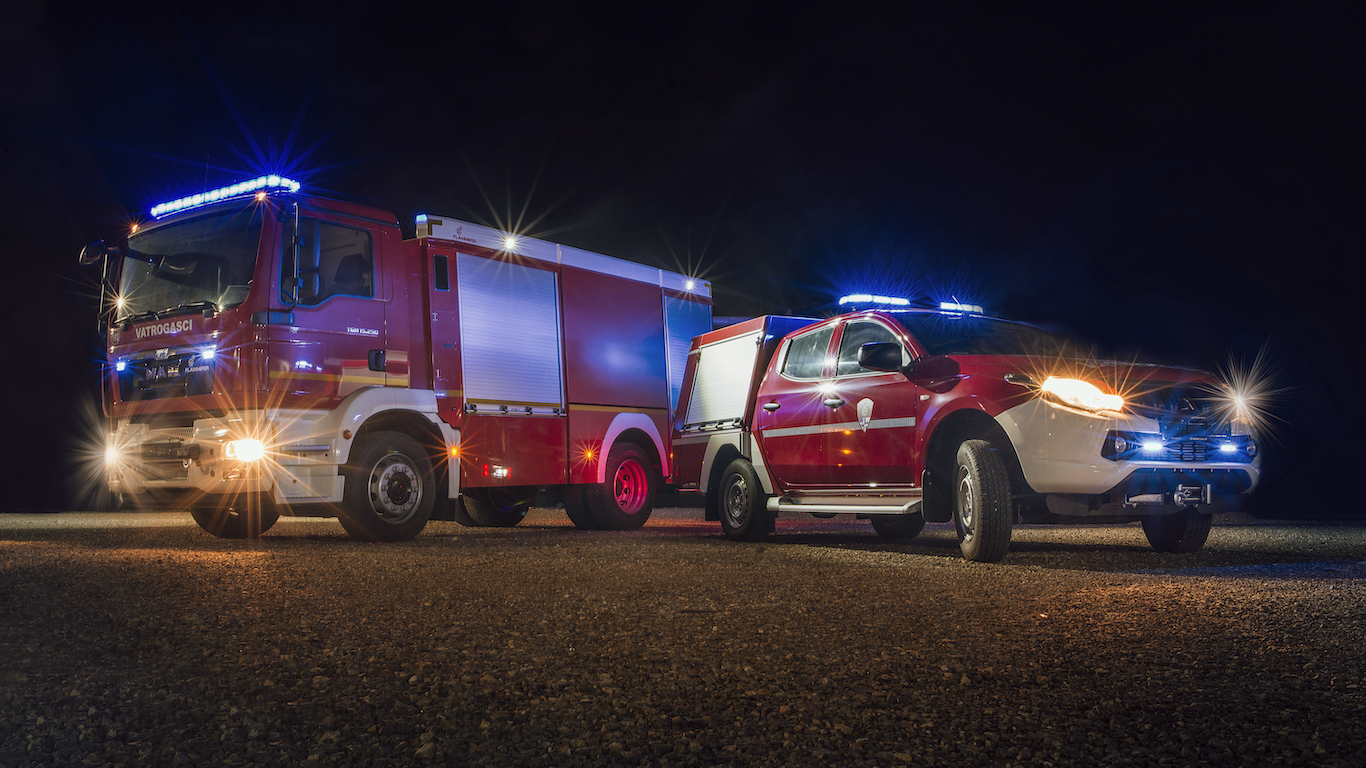

LED Signal light bar on the roof of the vehicle
Two LED flashlights on the front and the back of the vehicle
Multi-tonal fire siren with PA system
Setup for the installation of the radio
All the main signs on the client’s language
All other signalization according to the national regulations
