- Water tank capacity 8.000-10.000 litres made from stainless steel certified for drinking water transport
FF AC 8000/10000

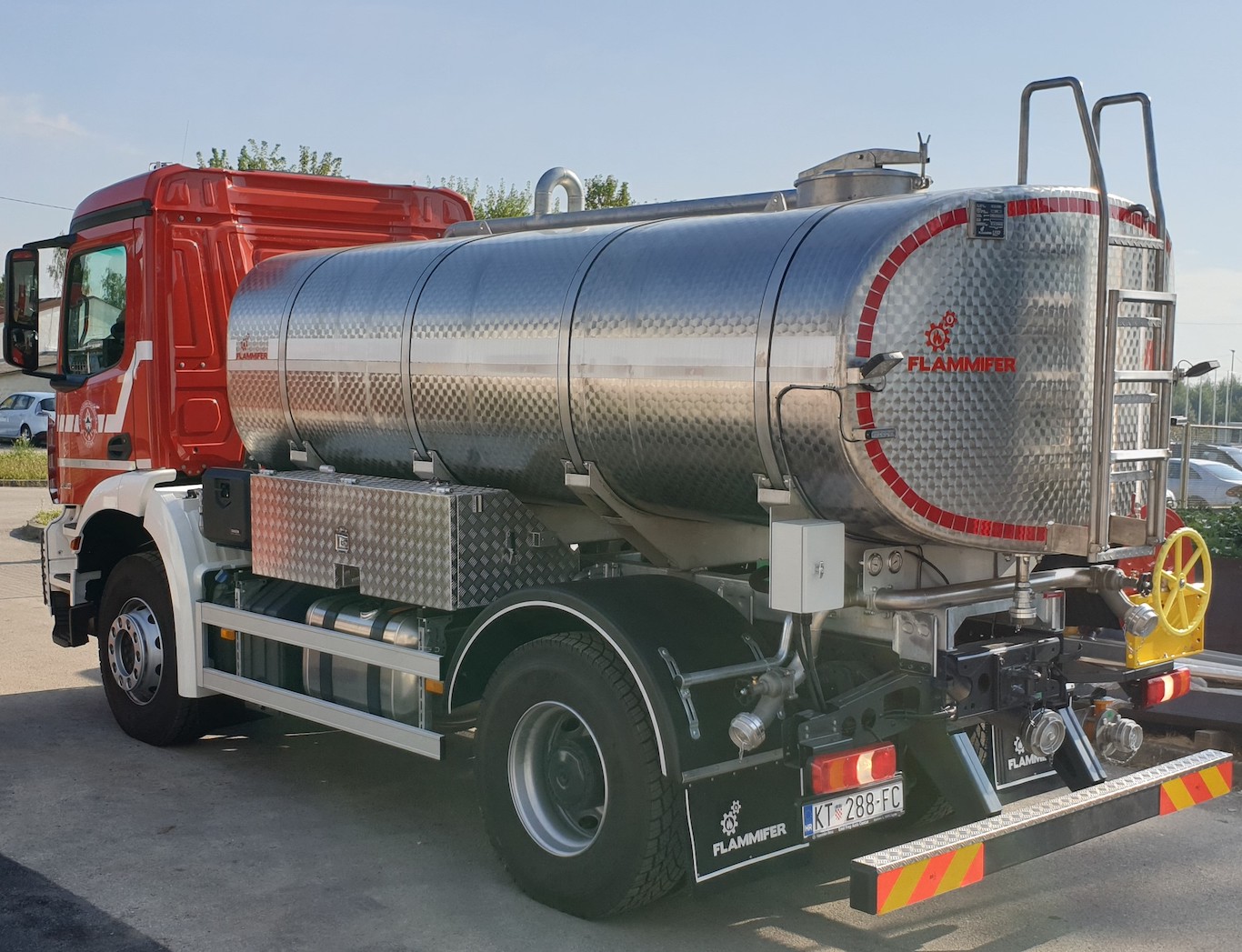

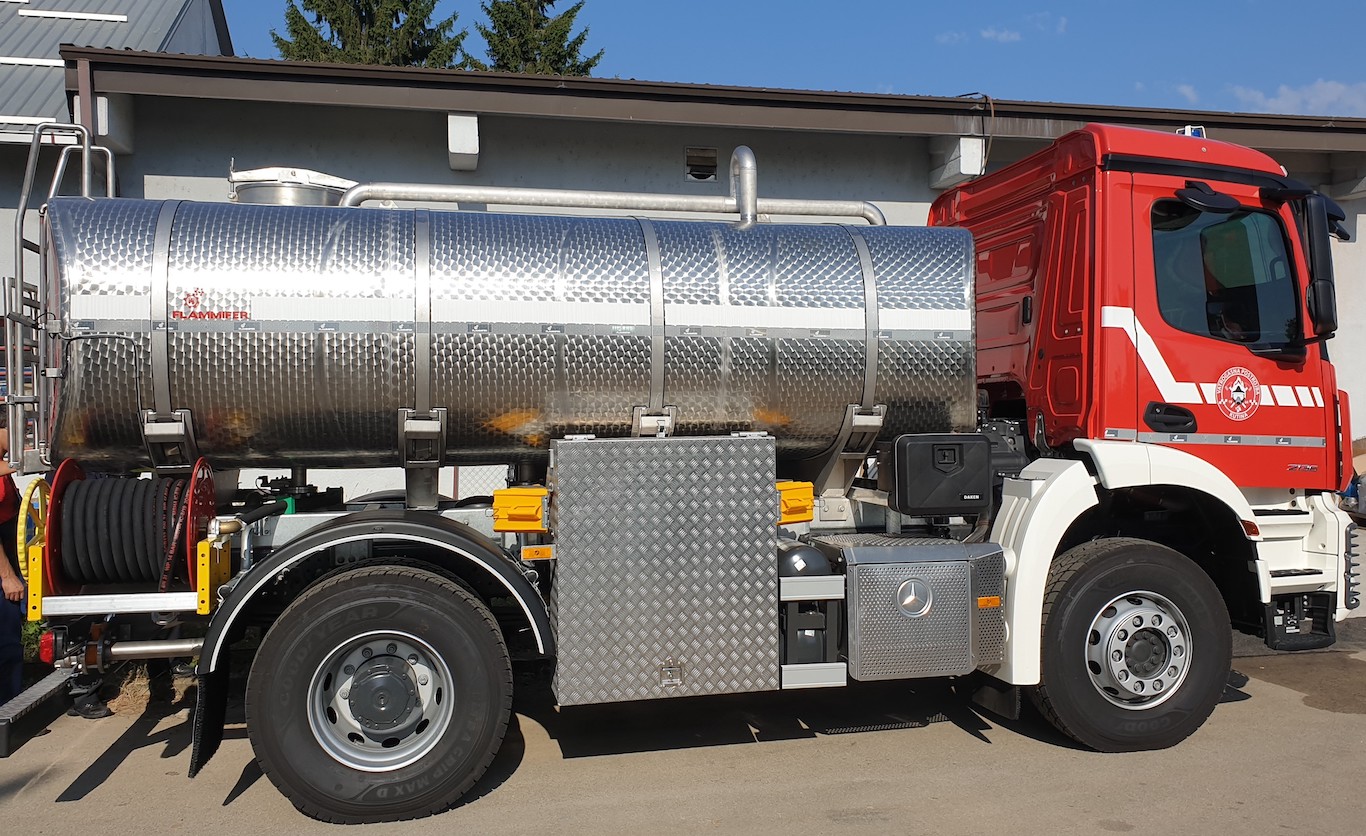

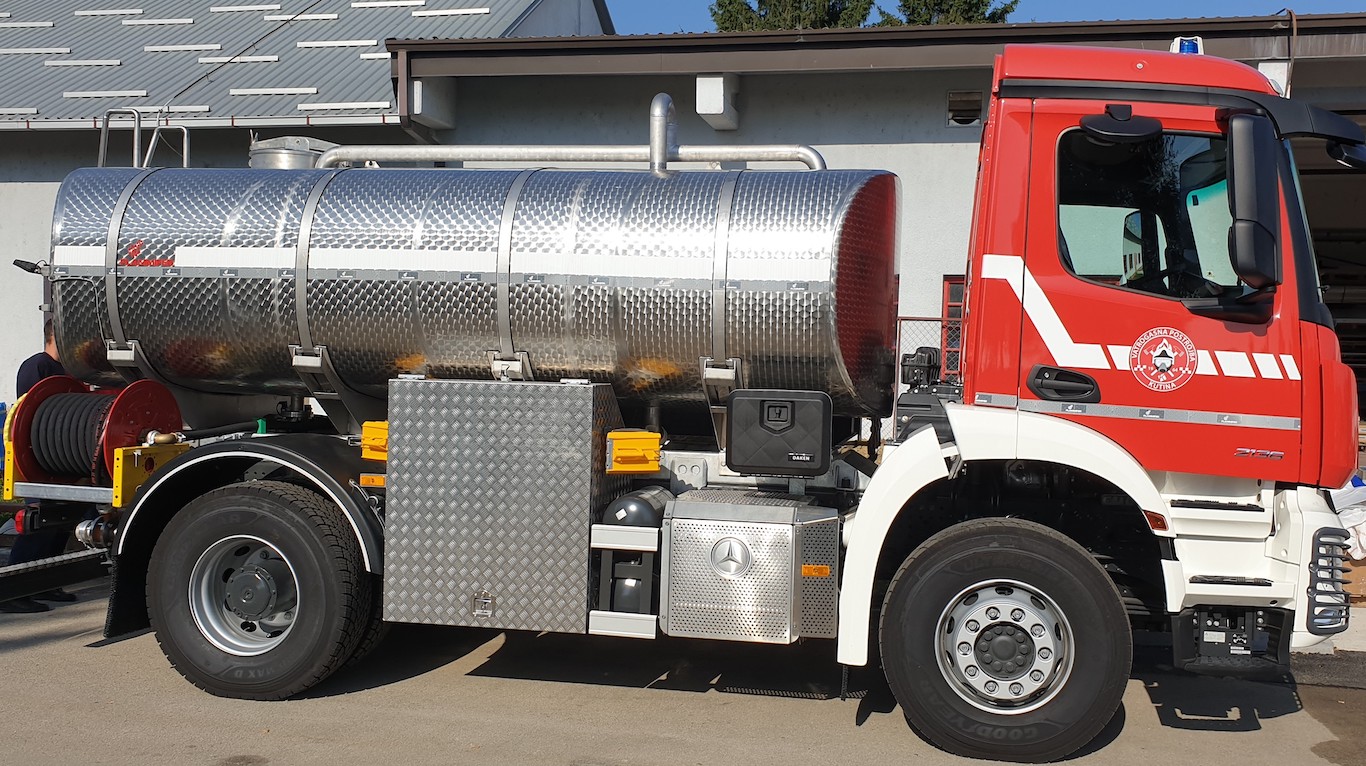

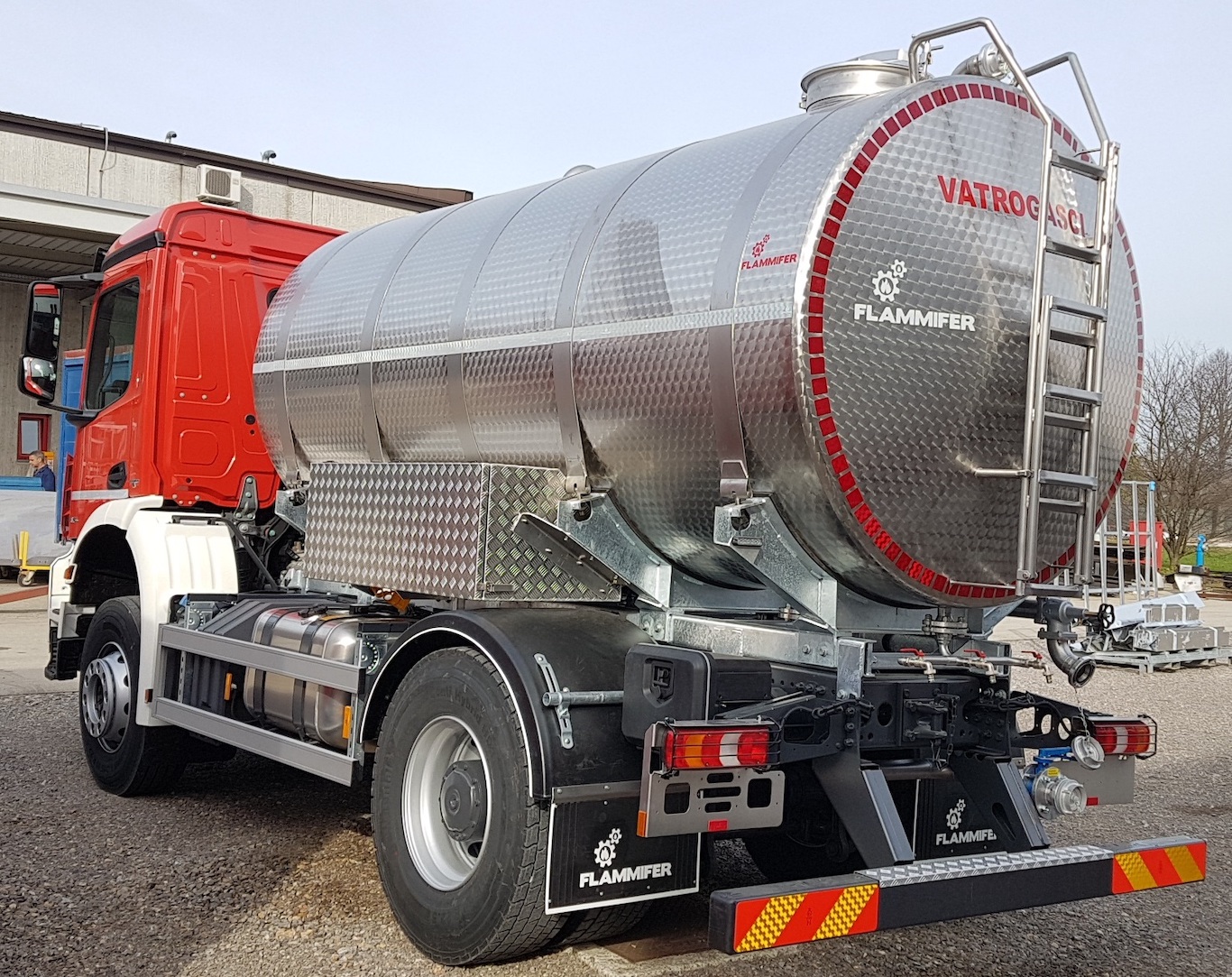

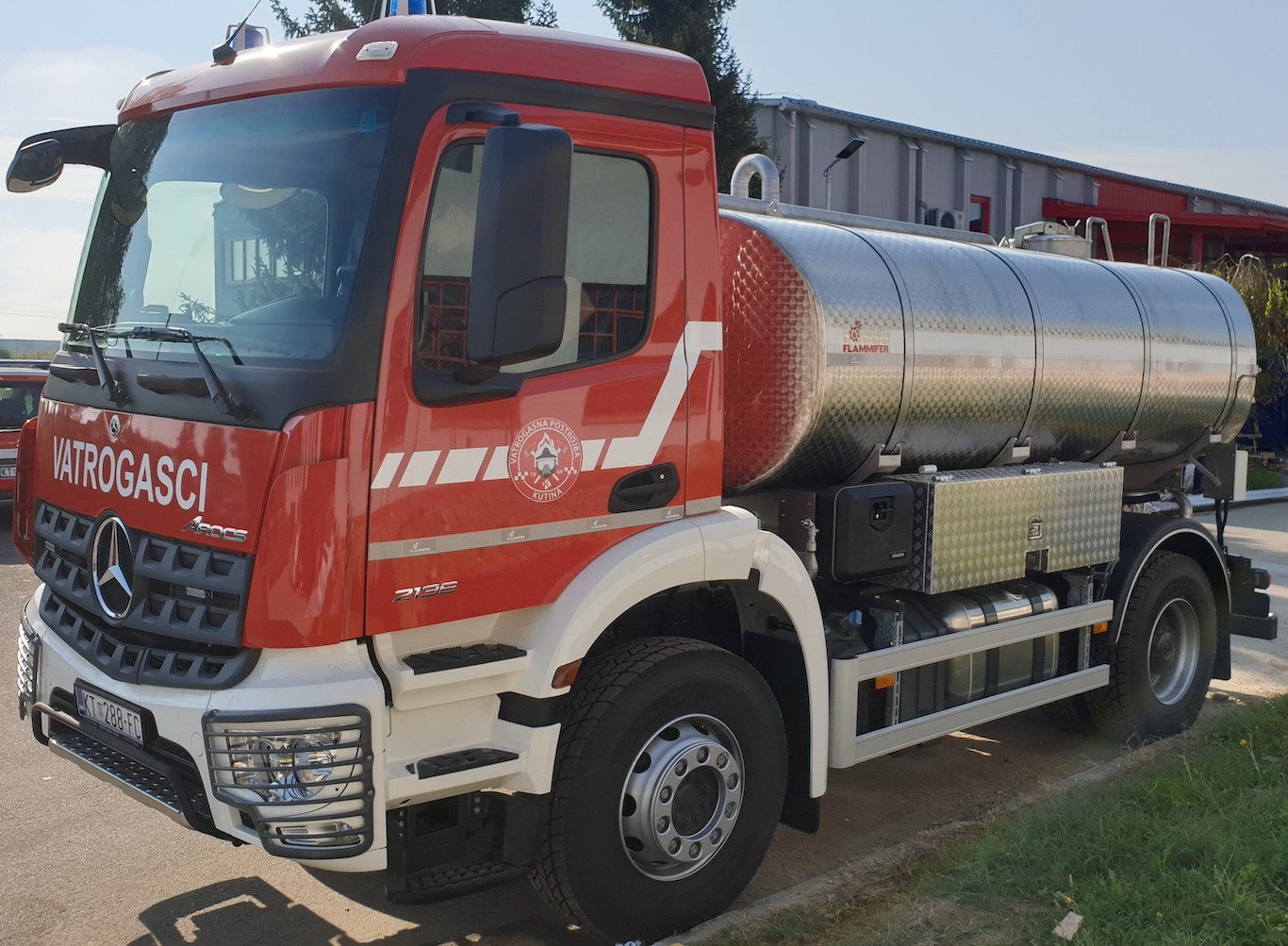

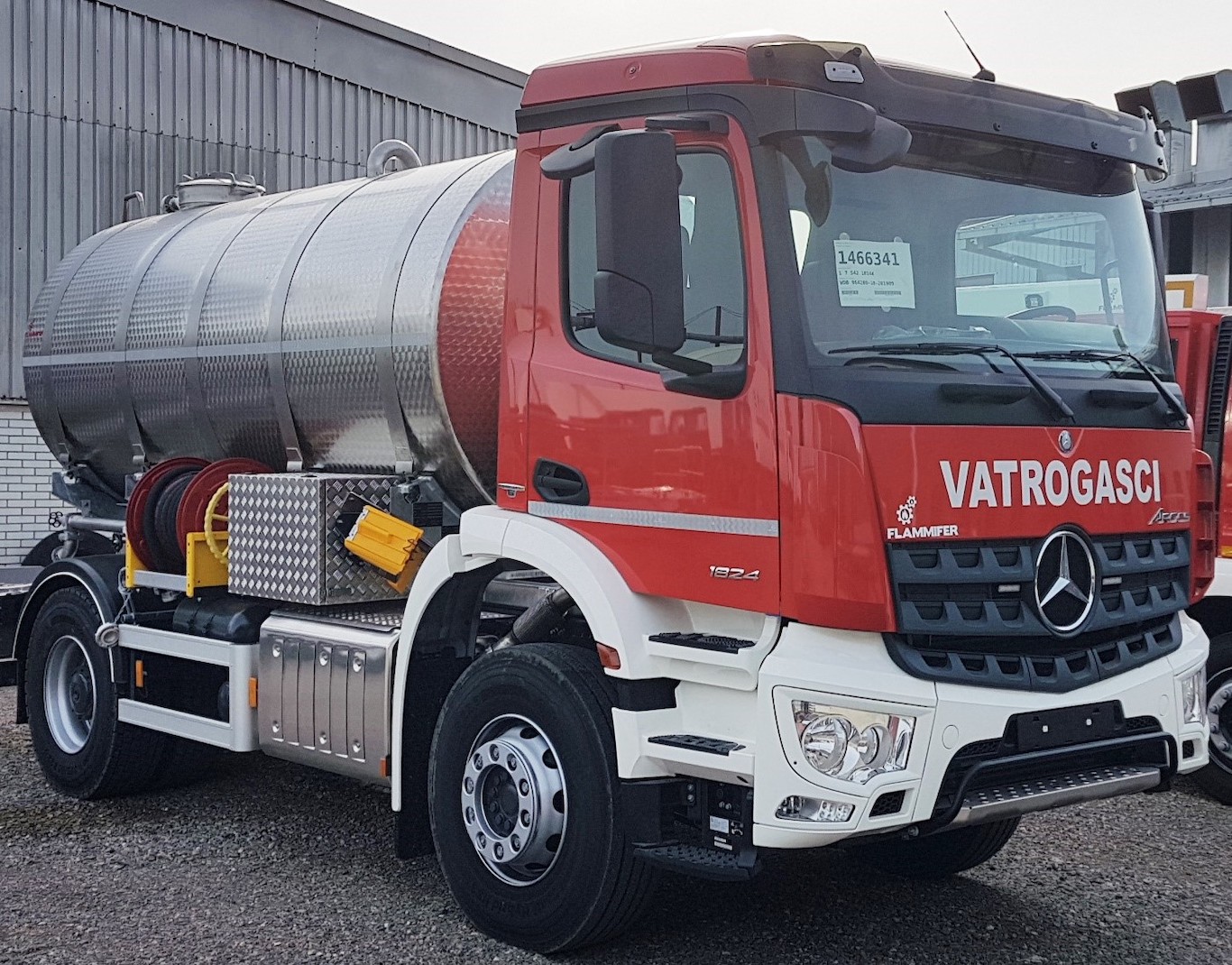

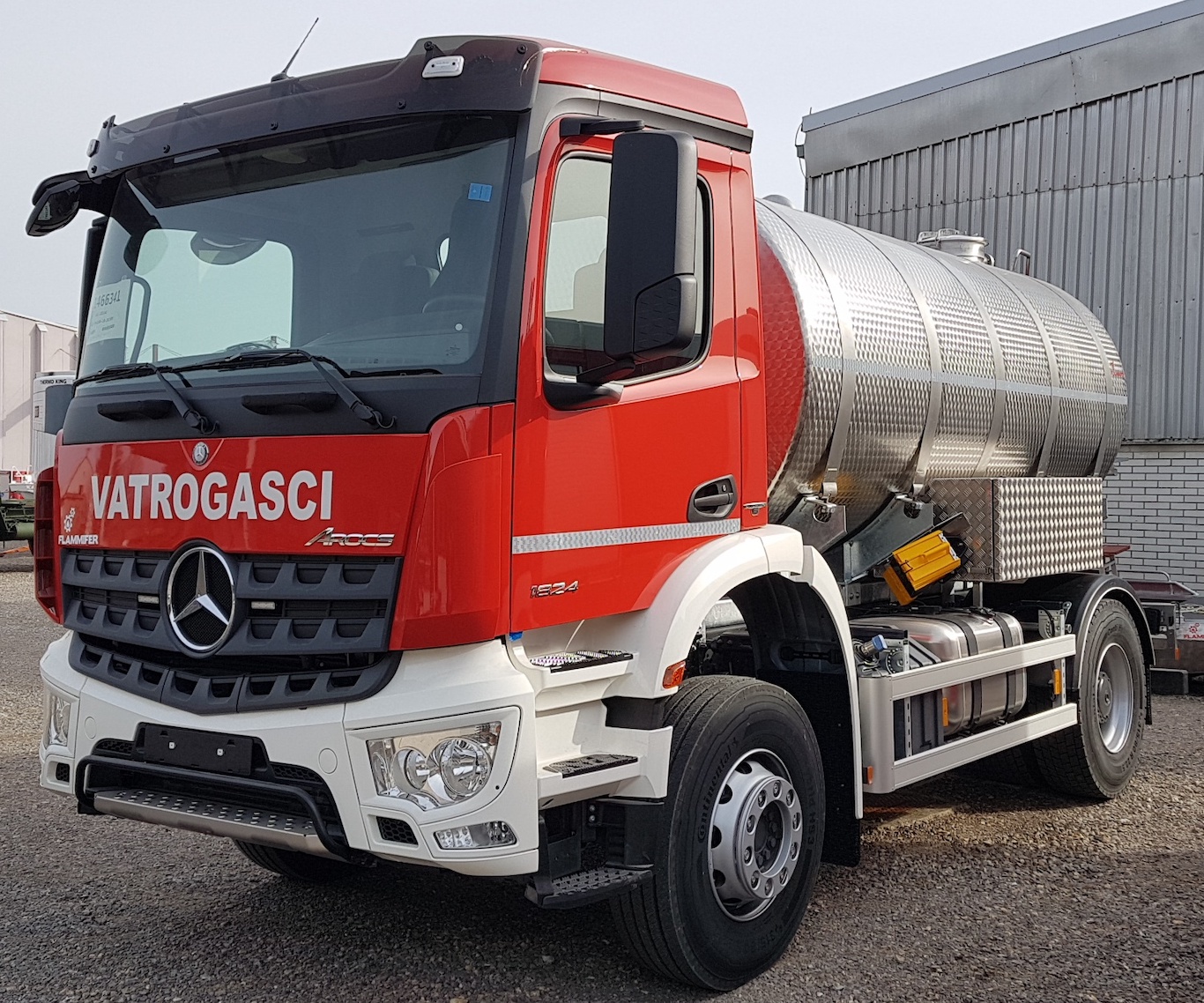

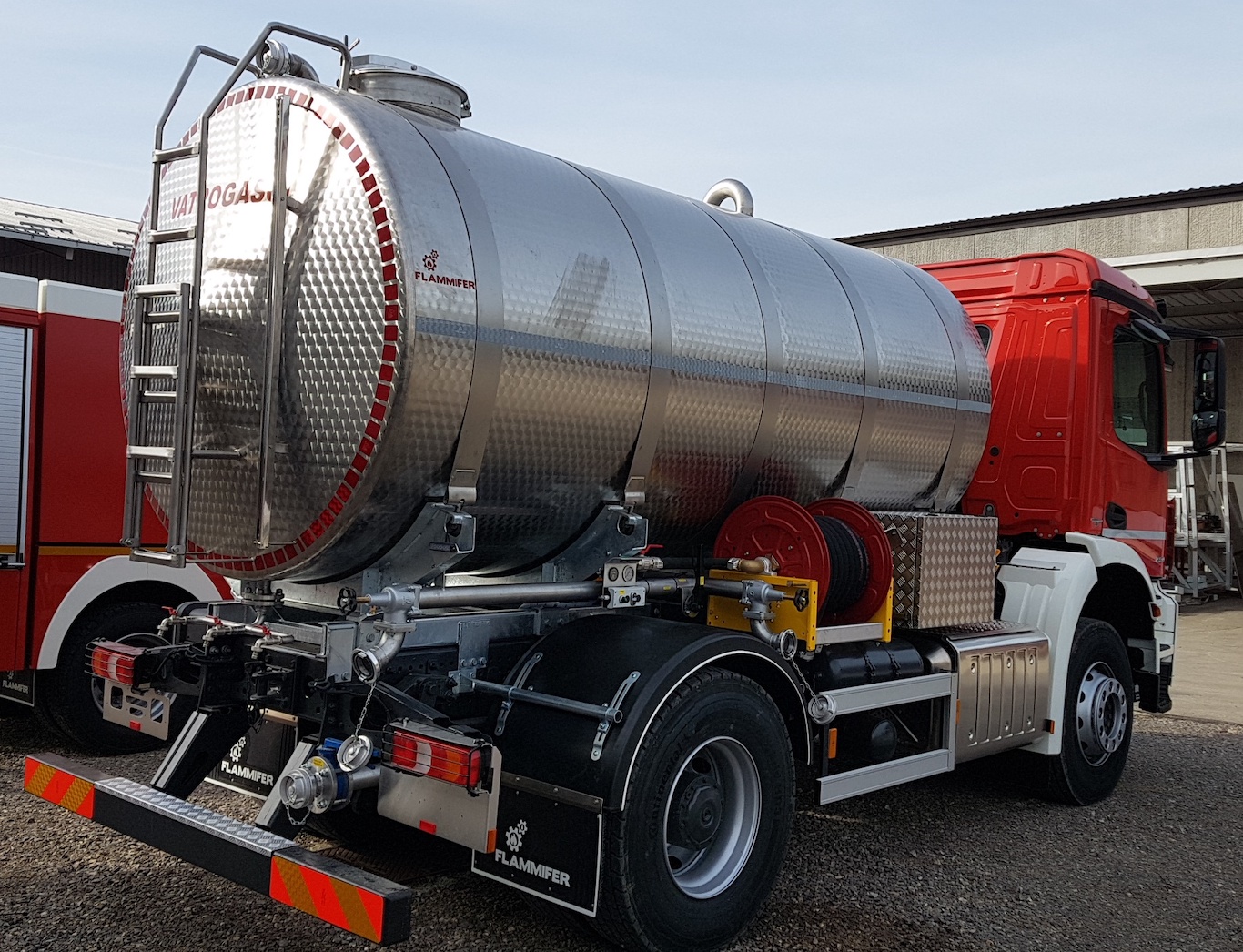

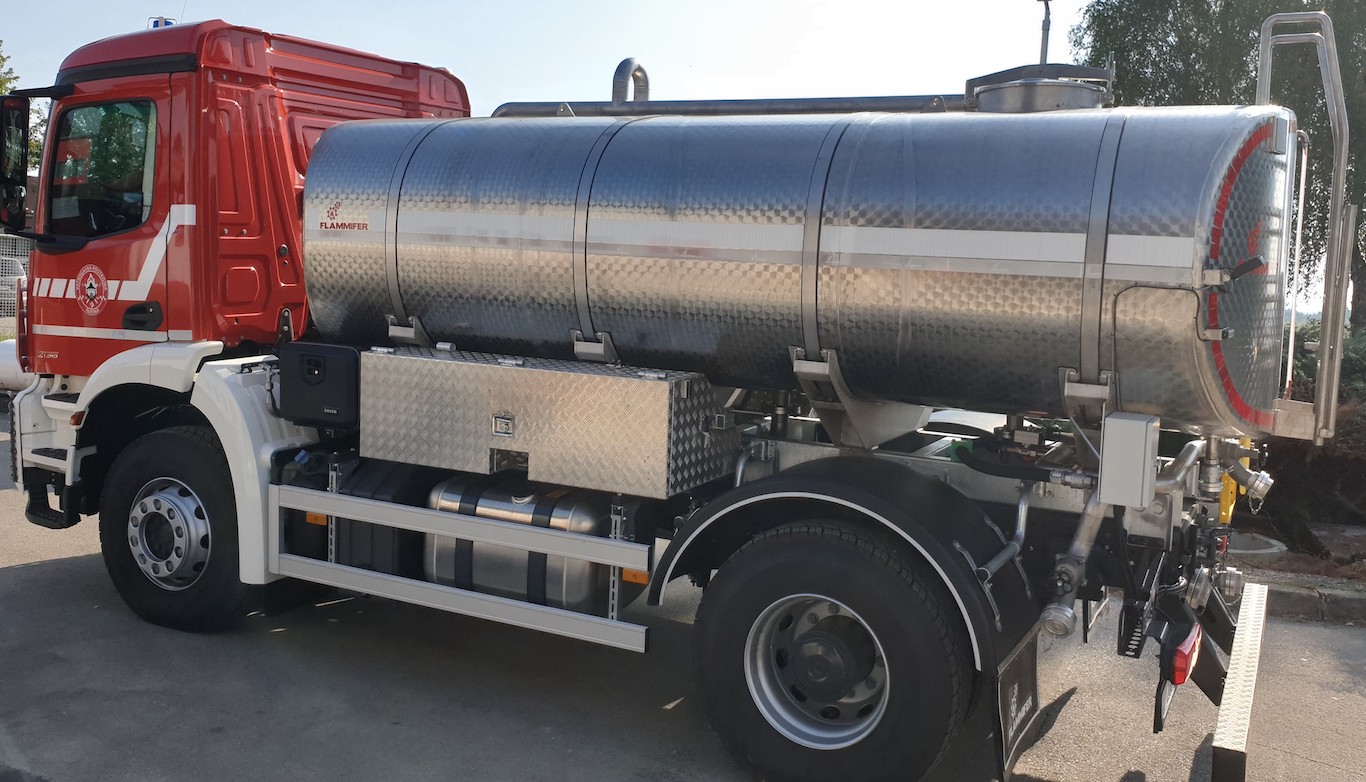

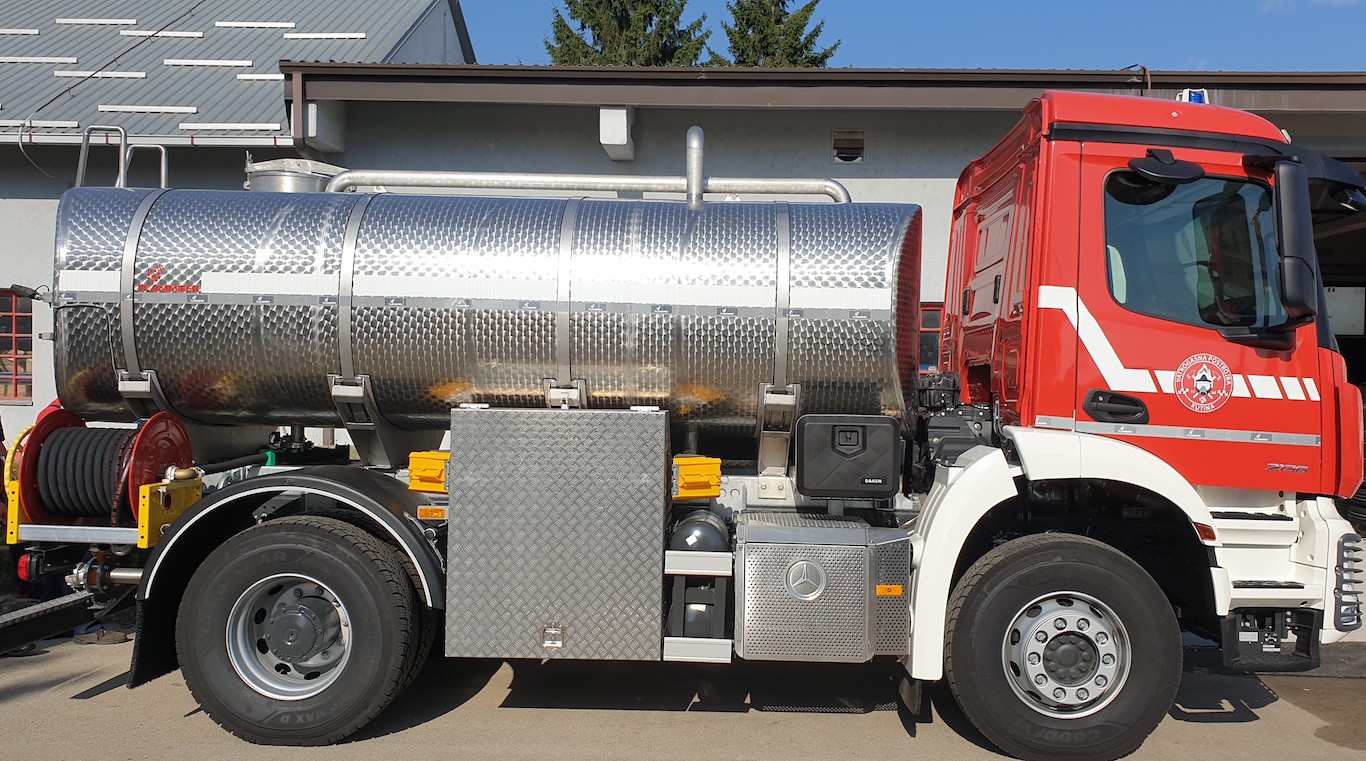

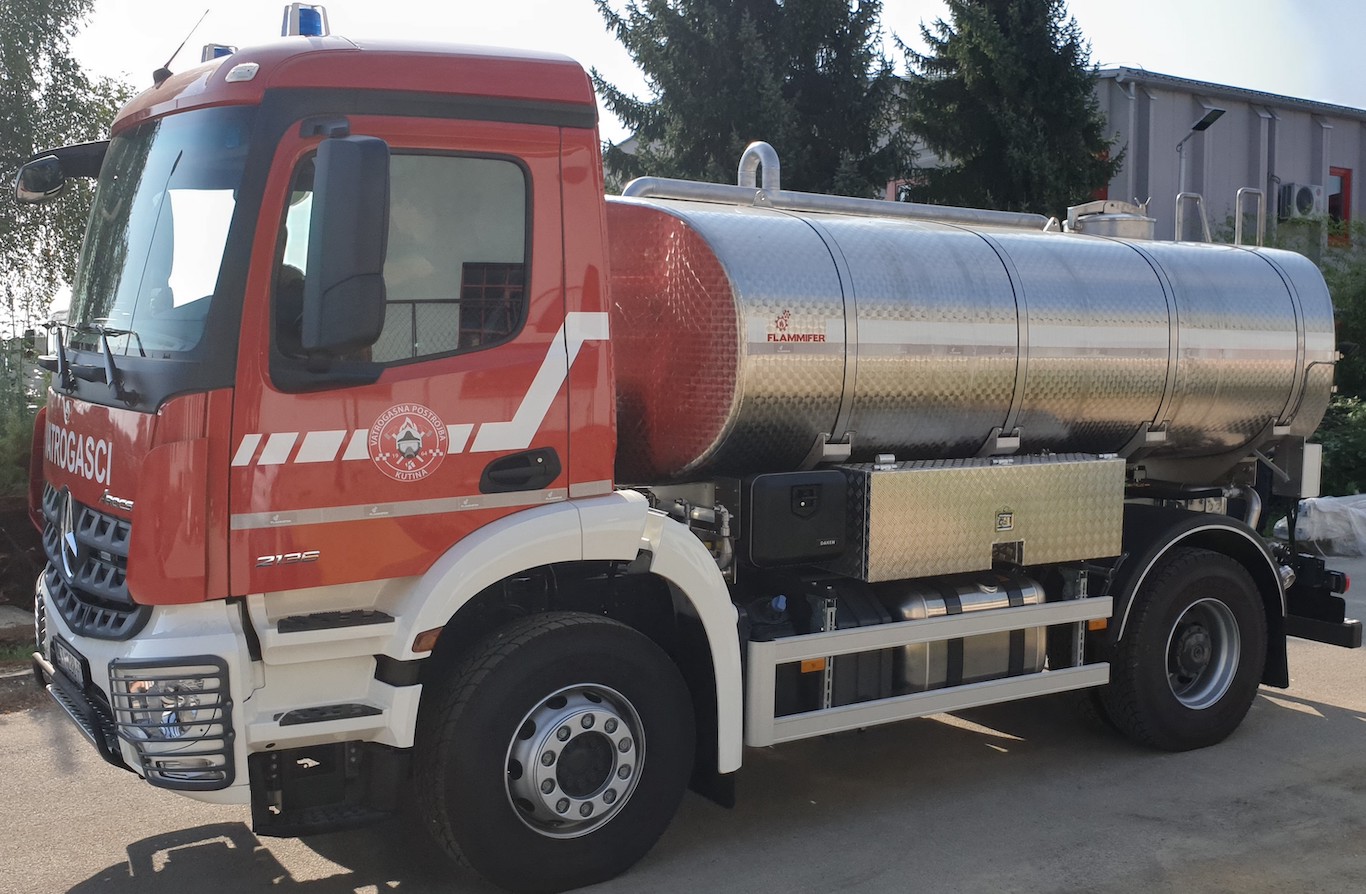

- Flammifer FF AC 8000/10 000 is a tanker truck for drinking water transport either as a support firefighting vehicle or a utility vehicle for drinking water distribution
- Tank capacity is 8.000 or 10.000 litres. It is equipped with a pump for water flow 1.000-3.000 l7min at 10 bar pressure
- In the firefighting version, there is the possibility of installation of a suction pump for suction of water from an external source “STORZ A” type of connector and a turret.

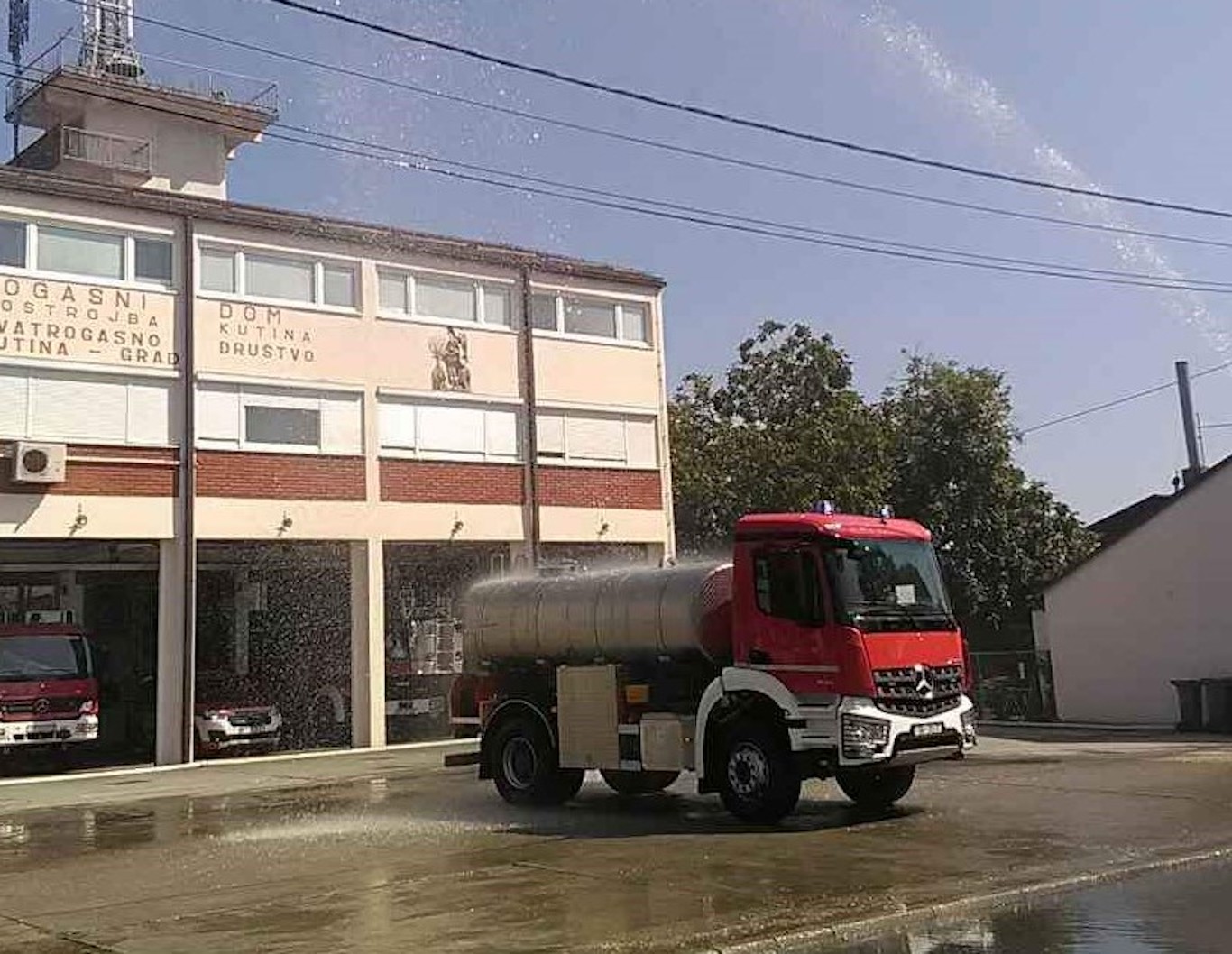

- In a utility version, sprinkles for road washing can be installed on the front side of a vehicle. Sprinkles are controlled by a driver in a cabin.
Chassis
- Maximum permissible mass 16 t (8000 l) – 18 t (10000
- Wheelbase 3200-3600 m
- Power 240-340 HP
- Cabin for 3 people
Equipment
- Medium pressure pump: FPN 10-1000 – FPN 10-3000
- Control panel
- Water draining taps

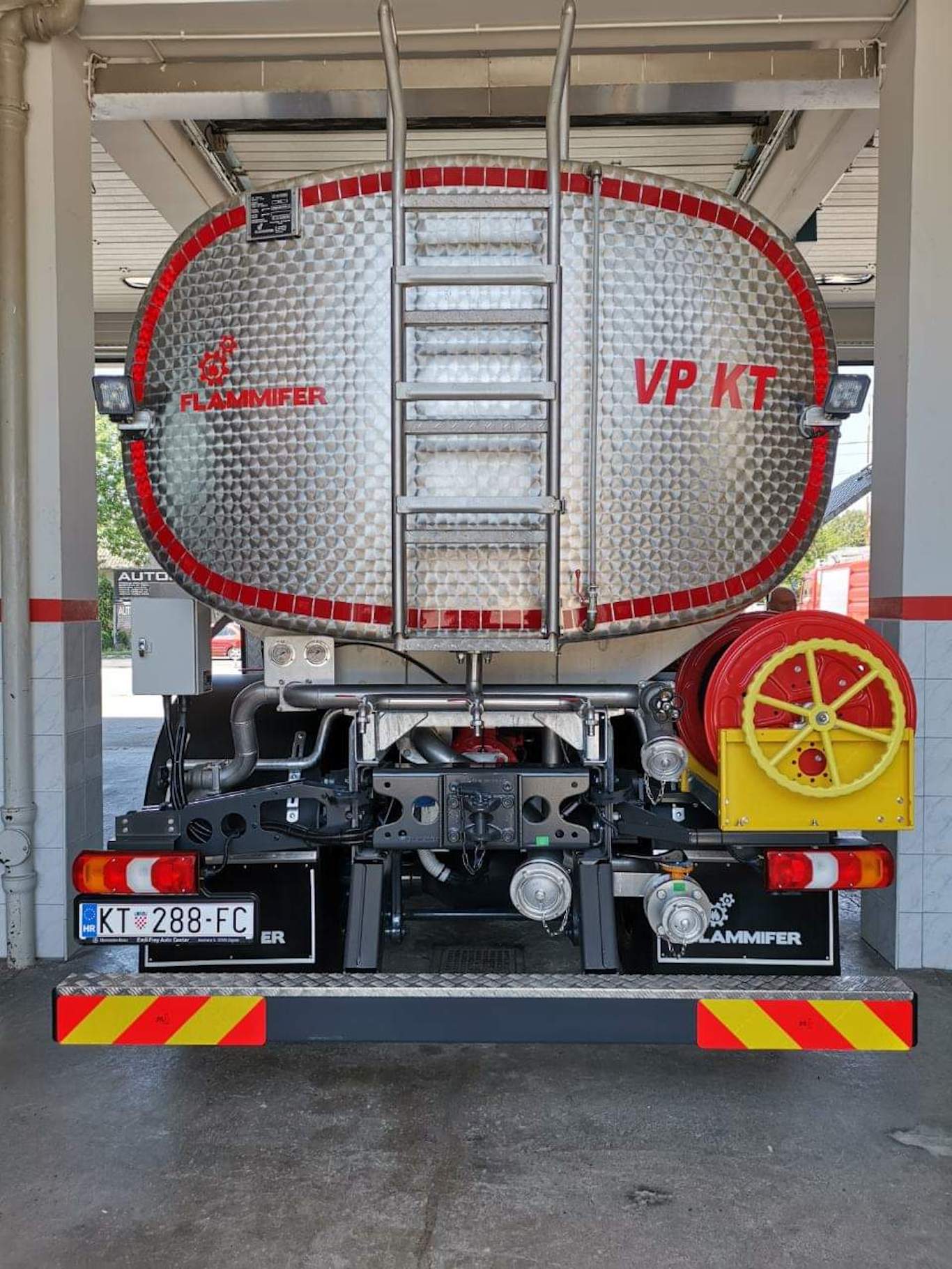

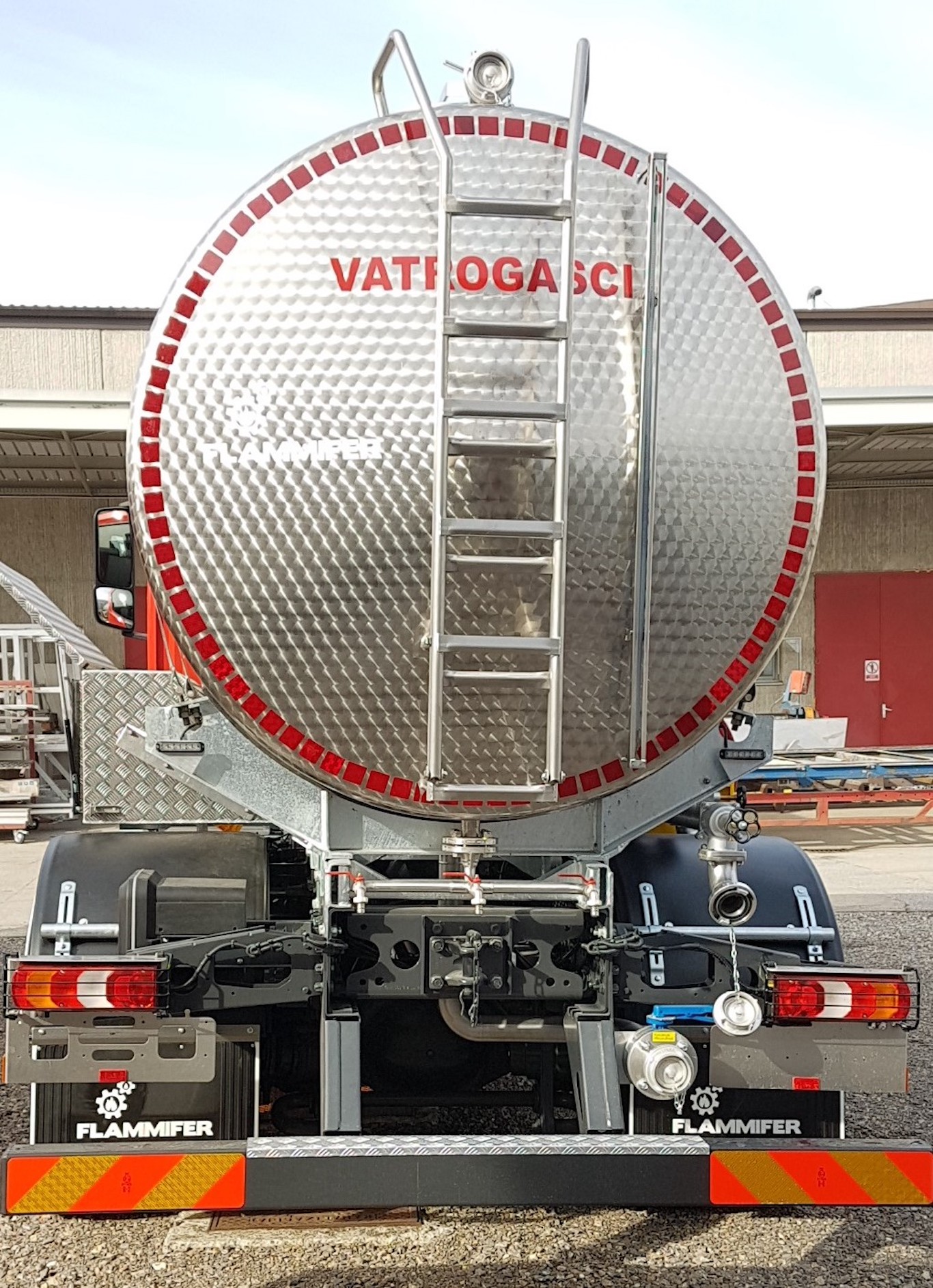

- Ladders for access to the roof
Optional
- High-pressure rapid invention hose reel 25 m in length with high-pressure water nozzle
- Storage containers
- Water suction device for installation on pump
- Turret mounted on the top of the tank, foldable with manual control engine’s RPM
- Light and sound signalization
- Work LED lighting on the side and rear of the vehicle
- Sprinkles for rod washing
- Multitone firefighting siren with a speaker
